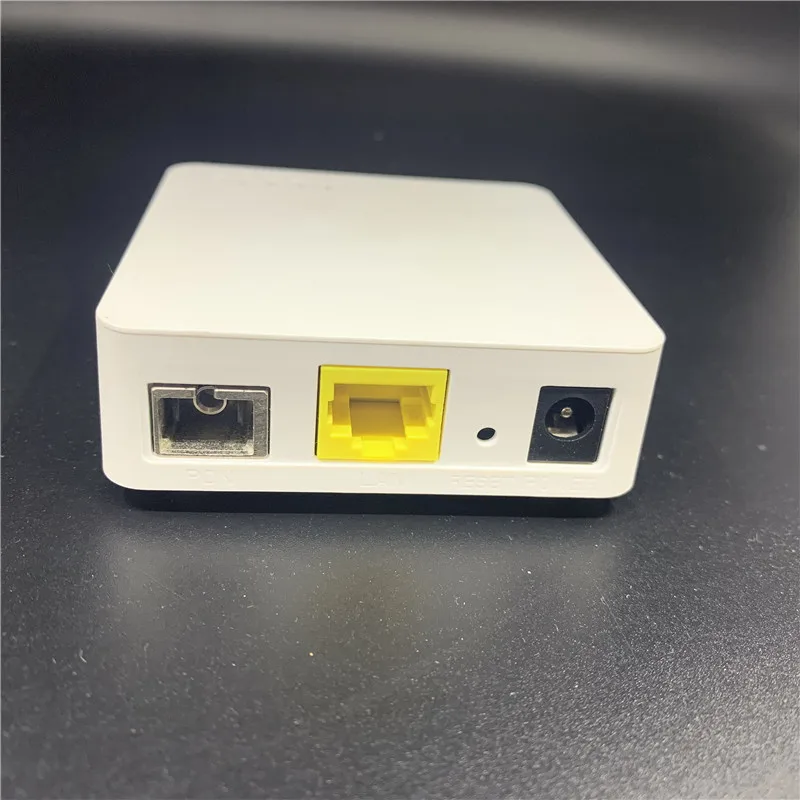

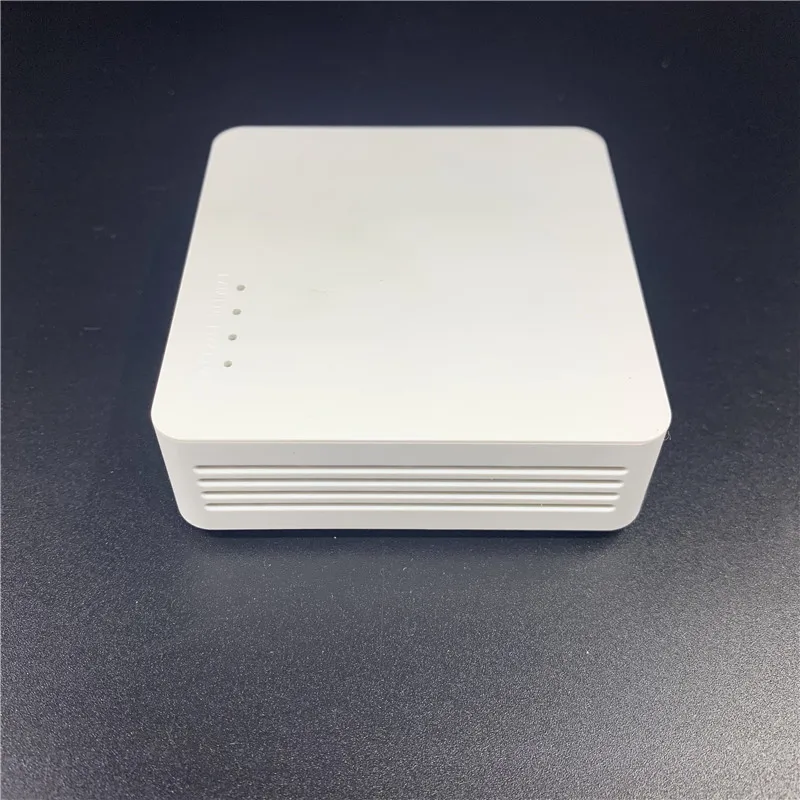

XPON Minni ONU 68MM XPON EPON1.25G/GPON2.5G G/EPON English ONU FTTH modem G/EPON appropriate router Model ONU MINI68*68MM

SKU: Z2L35804JTCE Category: Block Chain/Miner

$15.17

XPON wifi ONU FTTH modem GEPON router English Model

XPON=EPON(1.25G)+GPON(2.5G)Adaptive compatibility=G/EPON

G/EPON ONU XPON absolutely meet the ITU-T technical requirements and have good compatibility with third social gathering producers OLT. 1GE WiFi G/EPON XPON can combine with 802.11b/g/n technical requirements wi-fi perform,

Product Description

Energy Interface

12V DC Energy provide

PON

Optical

Parameter

Wavelength: Tx 1310nm, Rx1490nm
Tx Optical Energy: 0~5dBm
Rx Sensitivity: -28dBm
Saturation Optical Energy: -8dBm
Connector Sort: SC
Optical Fiber: 9/125μm single-mode fiber

Knowledge Transmission
Parameter

PON Throughput: Downstream 2.488Gbit/s/1.244Gbps; Upstream 1.244Gbit/s
Ethernet: 100Mbps or 1000Mbps
Packet Loss Ratio:

Enterprise
Functionality

Layer 2 wire velocity switching

Assist VLAN TAG/UNTAG,VLAN conversion

Assist Port-based velocity limitation

Assist Precedence classification

Assist storm management of broadcast

Assist loop detection

Community
Administration

Assist IEEE802.3 QAM, ONU could be remotely managed by OLT

Commonplace compliant OMCI interface as outlined by ITU-T G.984.4

Assist WEB administration

Administration
Operate

Standing monitor, Configuration administration, Alarm administration,
Log administration

Shell

Plastic casing

Firm Data

Packaging & Transport

Specification: XPON Minni ONU 68MM XPON EPON1.25G/GPON2.5G G/EPON English ONU FTTH modem G/EPON appropriate router Model ONU MINI68*68MM

Brand Name

ANDDEAR

Model Number

ANDDEAR-X21

Power supply

:External 12V 0.5A AC/DC power supply adapter

Optical interface

:SC/PC connector

Wavelength

:Tx1310nm/Rx1490nm

Tx Optical Power

:0~5dBm

Connector Type

:SC

parameter

1.25G/2.5G Adaptive compatibility
