TXE013 a Pair of Gigabit Ethernet Media Converter 1G Optical Single fiber transceiver,Single SC Fiber Connector 20km 1310nm

Product function

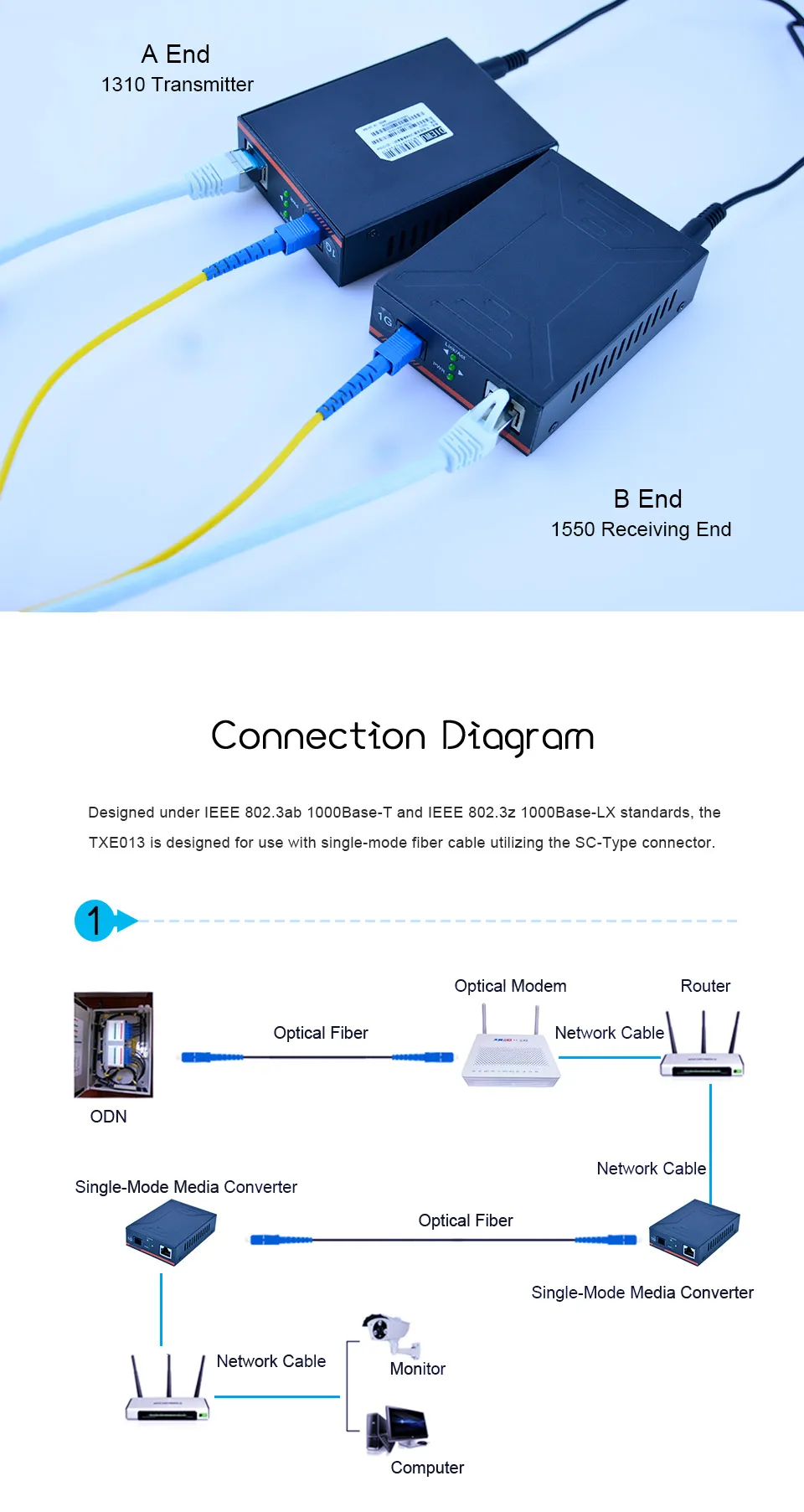

The TXE013 is a media converter designed to transform 1000BASE-LX fiber to 1000Base-T copper media or vice versa. Designed below IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-LX requirements, the TXE013 is designed to be used with single-mode fiber cable using the SC-Kind connector. The TXE013 helps longwave (LX) laser specification at a full wire velocity forwarding fee. It really works at 1310nm on each transmitting and receiving knowledge, and it’ll transmit at prolonged fiber optic distances using single-mode fiber as much as 20 kilometers.
1.Complies with IEEE 802.3ab and IEEE 802.3z
2.Helps full-duplex circulation management (IEEE 802.3x)
3. Hyperlink fault passthrough and much finish fault reduce the loss attributable to hyperlink failure well timed
4. LED indicators present a simple approach to monitor community exercise
5. Capacity for use as a stand-alone gadget or with 19’’ system chassis
6. Helps auto MDI/MDIX for TX port
7. Extends fiber distance as much as 20km
8.Exterior energy provide

Product specification


IEEE 802.3I, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z


1- 1000Mbps SC port

1- 10/100/1000Mbps RJ45 port


PWR, FX Hyperlink/Act, TP Hyperlink/Act

Transmission Distance



Single-mode Fiber, TP

Wave Size


Dimensions (W x D x H)

93.5 x 70.5 x 26 mm


124 g


Humidity: 20~80% RH

Working Temperature: 0°C to 55°C

Storage Temperature: -25°C to 70°C

Energy Provide

Exterior Energy Adapter: 5V/0.5A

Max Energy Consumption


Brand Name






Model Number


Transmission Rate




Communication Mode


Transmission Distance


Transmission Media

Single-mode Fiber, TP

Wave Length



IEEE 802.3I, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z
