PCBA module mini 3 port ethernet swap 10/100mbps rj45 community hub PCB board for system integration manufacturing facility OEM/ODM

SKU: C35TY4VCBXAC Category: Network Switches

$99.90

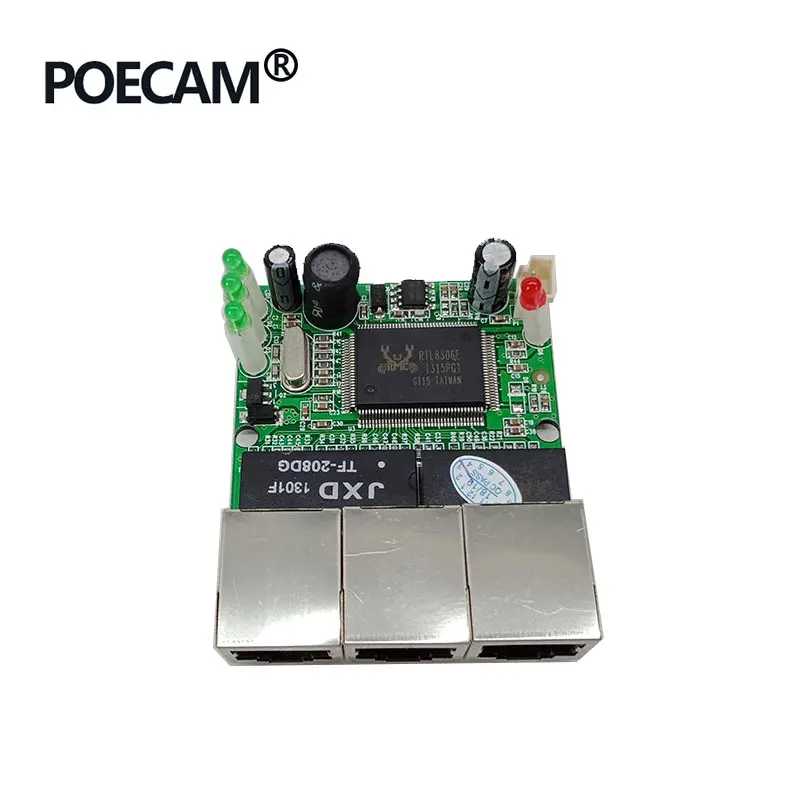

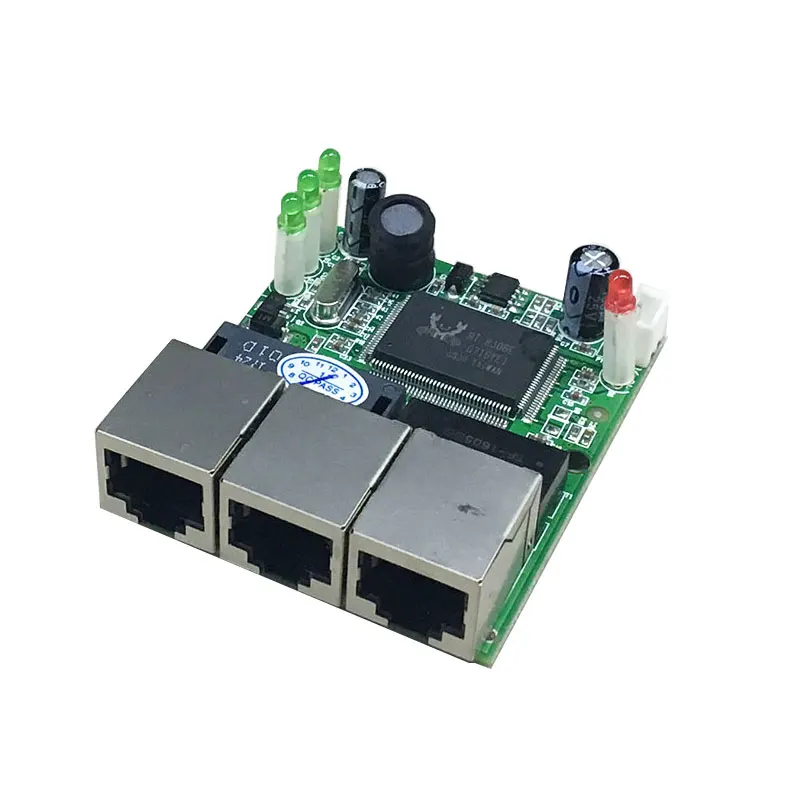

mini 3 port ethernet swap 10/100mbps rj45 community swap hub pcb module board for system integration

What’s it Does

This can be a 3 Port Community Change,Ethernet Change,Desktop Change,SOHO Change, It offers 5 10/100Mbps Auto-negotiation ports,Which you need to use to ascertain a LAN community, or prolong to the uplink community,

It present 3 port 100Mpbs Ports, Use machine built-in or embedded machine gadget inside growth ports, 3 port swap is excellent warmth dissipation efficiency

Options

Complies with IEEE 802.3 and IEEE 802.3u requirements

3 10/100Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX

Assist IEEE 802.3x circulate management for full duplex mode and backpressure for half duplex mode on all port

Non-blocking switching structure that ahead and filter packets at wire-speed for max throughput

Assist MAC deal with auto-learning and auto-aging

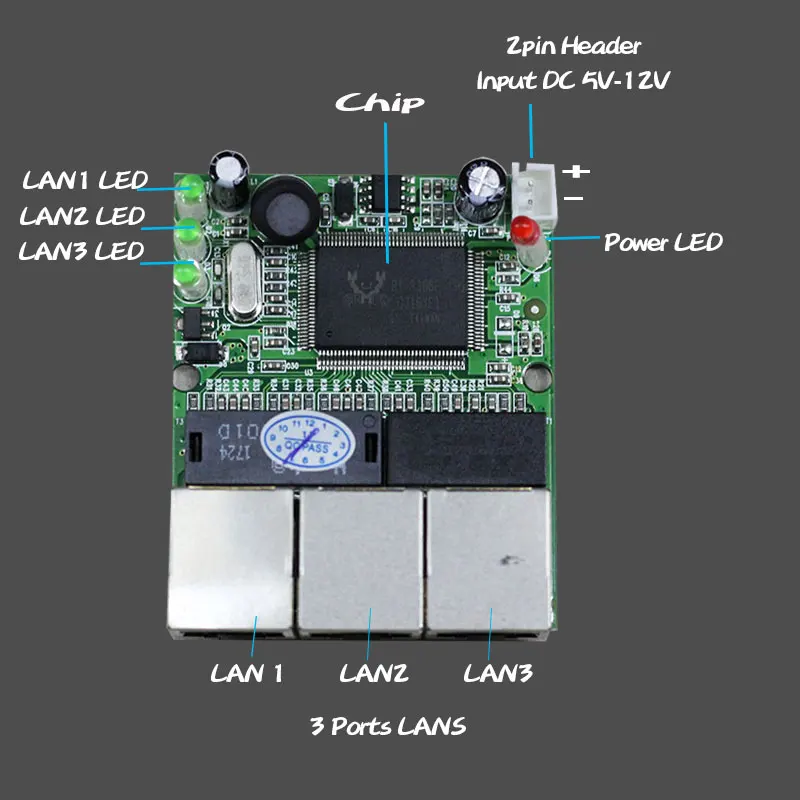

LED indicators for monitoring energy,hyperlink/exercise

Use machine built-in or embedded machine gadget inside growth ports

Steady product and superb warmth dissipation efficiency

Mini cabling dimension design,PCB dimension:60x50x18mm

Extensive DC voltage Enter 5-12V

Chip: RTL8306E

Product specification

Specs

Requirements

IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Quick Ethernet

IEEE 802.3x circulate management

protocol

CSMA/CD

Transmission Charge

Ethernet 10Mbps (half duplex),20Mbps (full duplex); 10BASE-T:14,880pps/port
Quick Ethernet 100Mbps (half duplex),200Mbps (full duplex); 100BASE-TX :148800pps/port

Topology

Star

Community Medium

10Base-T:Cat 3 or above Cat.3 UTP(Lower than 100m)

100Base-TX:Cat 5 UTP(Much less than100m)

Variety of Ports

3port 10/100M RJ45 ports

UPLINK

Any port (assist Auto-MDI/MDIX operate)

Transmits Technique

Retailer-and-Ahead

Temperature

Working Temperature 0 ~40 Celsius (32 F~104 F)

Storage Temperature -40 ~70 Celsius (-40 F~158 F)

Humidity

Working Humidity 10 ~90 % non-condensing

Storage humidity 5 ~95 % non-condensing

Change capability

1G

LED Indications

1* energy LED(Energy: Inexperienced)

3* port LEDs(Hyperlink/Act: Inexperienced)

Energy Provide

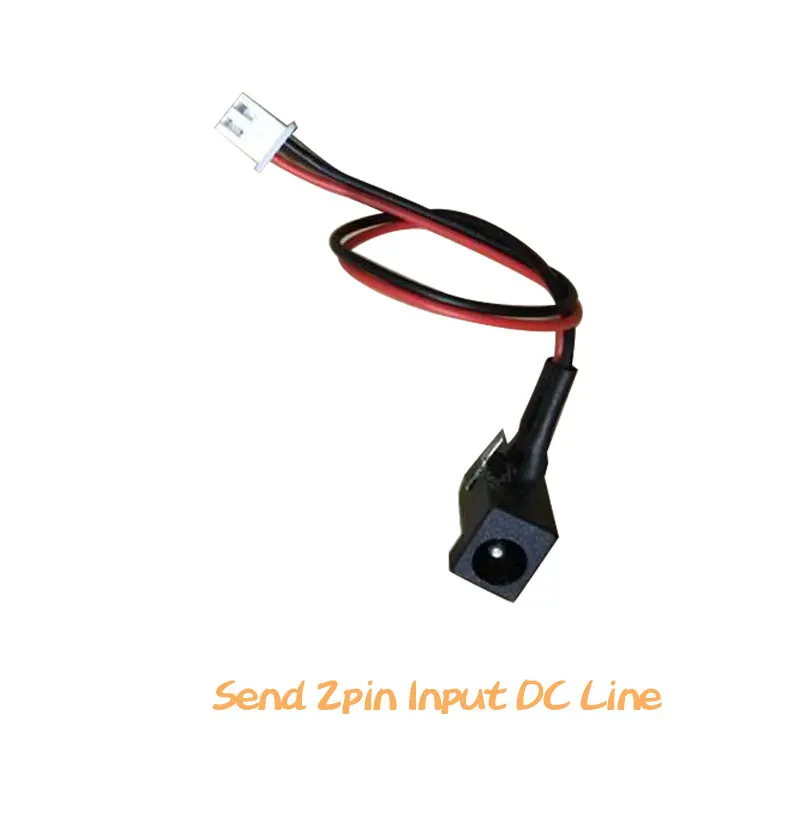

Exterior Provide energy adapter DC 5V1A

Packing Content material:

1 PCS 3 port Ethernet Change Module

Specification: PCBA module mini 3 port ethernet swap 10/100mbps rj45 community hub PCB board for system integration manufacturing facility OEM/ODM

Brand Name

XTDP-Link

Origin

CN(Origin)

Function

Stackable

Model Number

PL-ES2105DR-C2

Transmission Rate

10/100Mbps

VLAN

No

Certification

CE, RoHS, FCC

Switch Type

SOHO

Switch Capacity

1G

Package

No

Communication Mode

Full-Duplex & Half-Duplex

Product

3 port ethernet switch

Transfer rate

10/100mbps

Power range

DC 5-12v

Ethernet switch standard

compliant

Distrance

up to 100m max

LED indicator

Yes

Warranty

1 year

Fast ethernet

yes

OEM

Support

Ports number

3 ports
