OEM New mannequin 8 Port Gigabit Change module Desktop RJ45 Ethernet Change module 10/100/1000mbps Lan Hub swap module 8 portas

$19.82 $17.84

SKU:
7J2T7WU6G7S0
Buyer protection
Safe shopping
Easy returns and refunds
Free shipping worldwide

Metal Case 8 Port Gigabit Change module Desktop RJ45 Ethernet Change 10/100 / 1000mbps Lan Hub Community Change module Gigabit
The facility plug might be EU, US kind!

If want AU kind, pls contact us to vary worth earlier than fee!

Definition

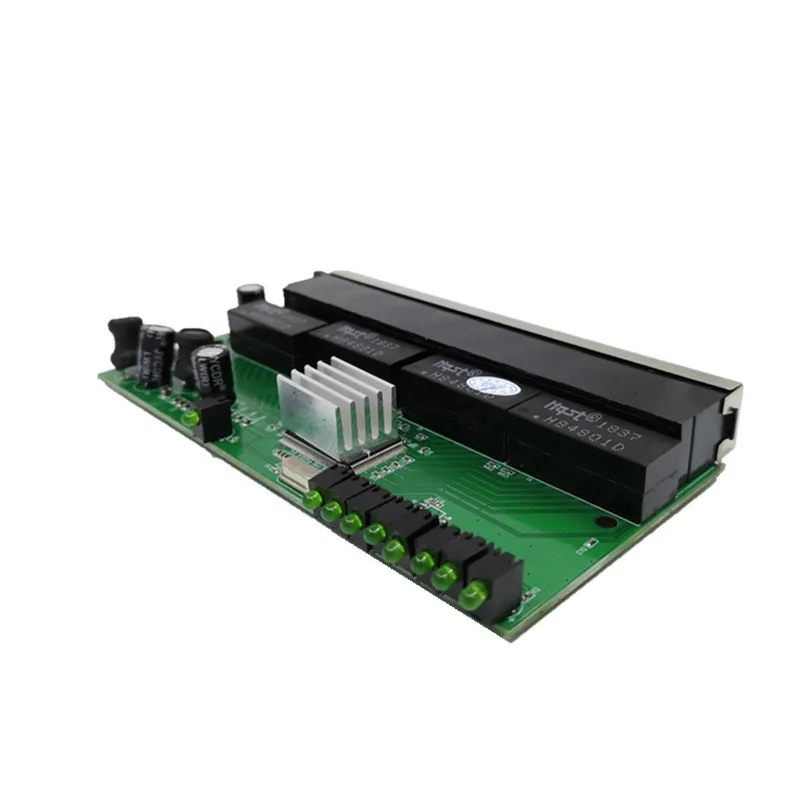

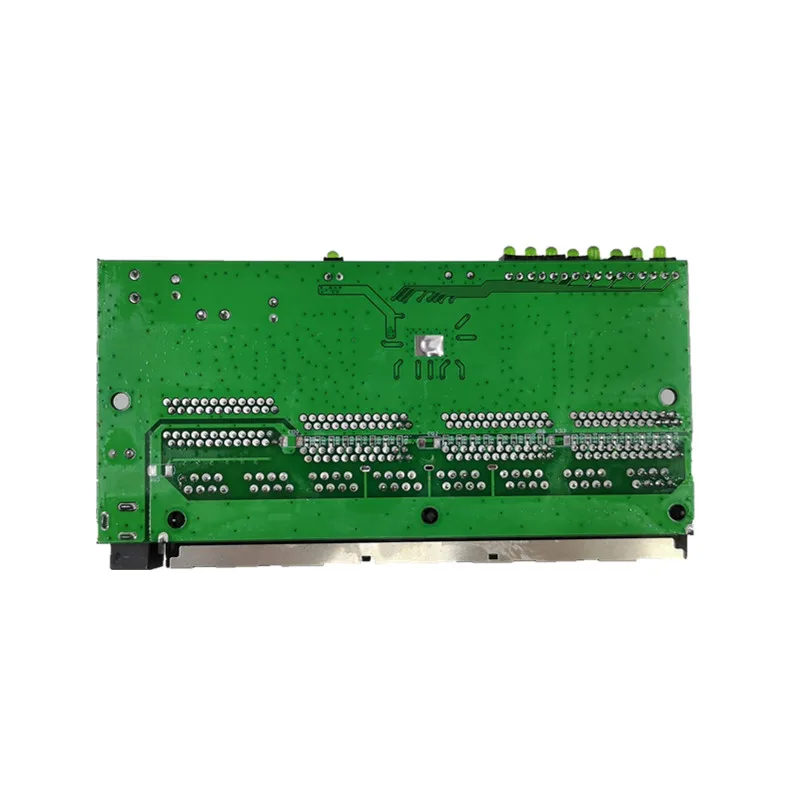

PL-GS3008DR-A1 8 port gigabit swap module 10/100 / 1000mbps ethernet community lan hub

Easy Options

1 8 port ethernet community gigabit swap

2 Desktop

3 Plug n Play

4 Metallic case

5 5-12V1A energy adapter

Purposes

The 8 port ethernet community gigabit swap is extensively utilized in corporations, inns, faculty, workplace, small Native space community and different locations

Options

Complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab requirements

8port 10/100 / 1000Mbps Auto-Negotiation RJ-45 ports, supporting Auto-MDI / MDIX

Helps 8K-entry MAC tackle desk with 4-way hash algorithm

Assist IEEE 802.3x movement management for full duplex mode and backpressure for half duplex mode on all port

Non-blocking switching structure that ahead and filter packets at wire-speed for max throughput

Assist MAC tackle auto-learning and auto-aging

LED indicators for monitoring energy, hyperlink and exercise

desktop metallic case

Exterior provide energy DC5-12v 1a

8port 10/100 / 1000M Gigabit swap module

Specs

Requirements

IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Quick Ethernet

IEEE 802.3ab 1000Base-T Gigabit Ethernet ANSI / IEEE Std 802.3 Nway Auto-Negotiation
IEEE 802.3x movement management

protocol

CSMA / CD

Transmission Price

Ethernet 10 Mbps (half duplex), 20 Mbps (full duplex); 10BASE-T: 14,880 pps / port
Quick Ethernet 100Mbps (half duplex), 200Mbps (full duplex); 100BASE-TX: 148800pps / port
Gigabit Ethernet 2000Mbps (full duplex), 1000BASE-T: 1488000pps / port

Topology

Star

Community Medium

10Base-T: Cat 3 or above Cat.3 UTP (≤100m)

100Base-TX: Cat 5 UTP (≤100m)

1000Base-T: Cat 6 or above Cat.5 UTP (≤100m)

Variety of Ports

8 port 10/100 / 1000M RJ45 ports

UPLINK

Any port (help Auto-MDI / MDIX perform)

Transmits Technique

Retailer-and-Ahead

Temperature

Working Temperature 0 C ~ 40 C (32 F ~ 104 F)

Storage Temperature -40 C ~ 70 C (-40 F ~ 158 F)

Humidity

Working Humidity 10% ~ 90% non-condensing

Storage humidity 5% ~ 95% non-condensing

Change capability

16G

LED Indications

1 * energy LED (Energy: Purple)

8 * port LEDs (Hyperlink / Act: Inexperienced)

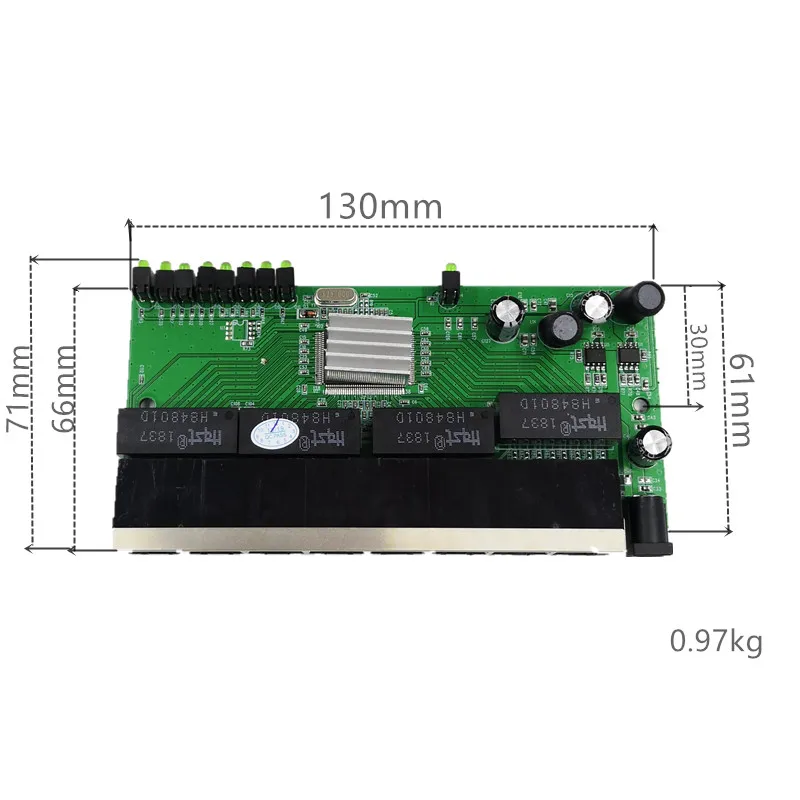

Dimension (W x H x D)

162 * 95 * 28mm

Energy Provide

Exterior energy 5v 2a or 12v 1a and so forth

Case Materials

Desktop plastic case

Certificates

CE ROHS FCC

Brand Name

ANDDEAR

Function

Stackable, Stackable

Model Number

lw-s010

Communication Mode

Full-Duplex & Half-Duplex, Full-Duplex & Half-Duplex

Switch Capacity

8

Transmission Rate

10/100/1000Mbps, 10/100/1000Mbps

Certification

yes

Package

Yes, Yes

Switch Type

Gigabit Switch, Gigabit Switch

Ports

<=8

Products Status

Stock
