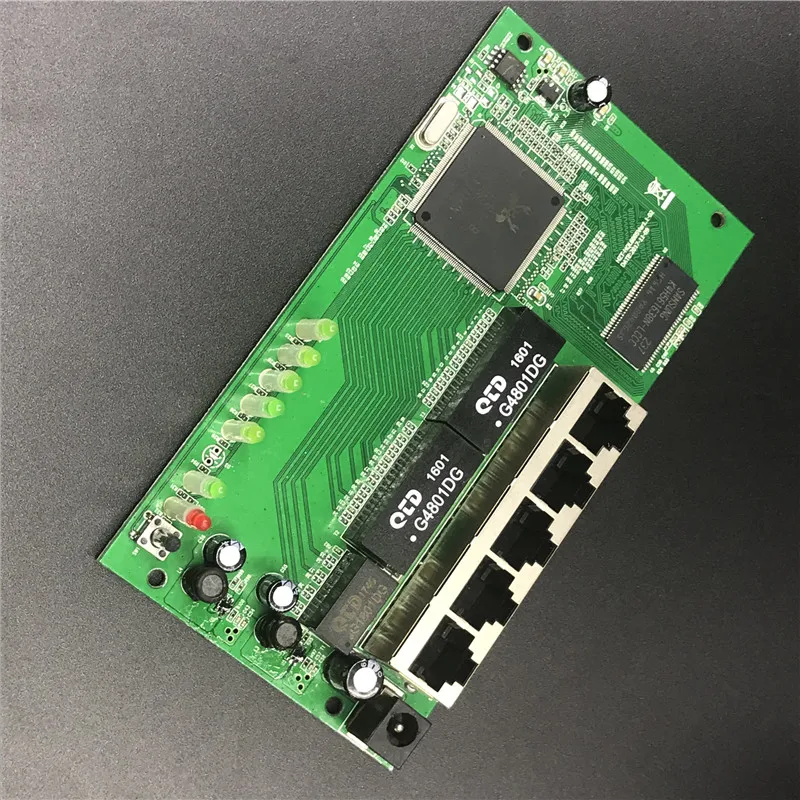

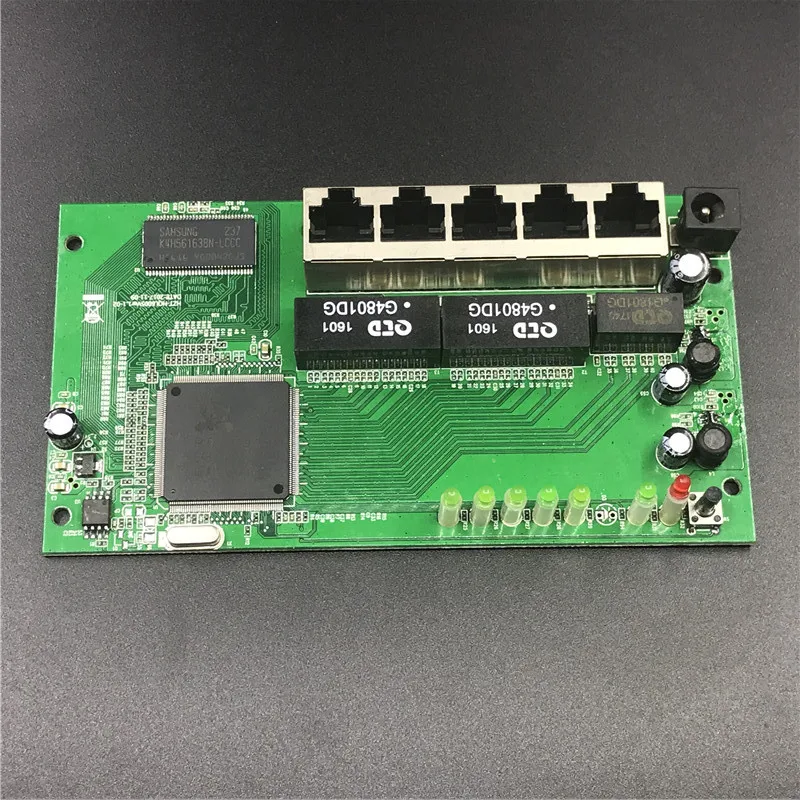

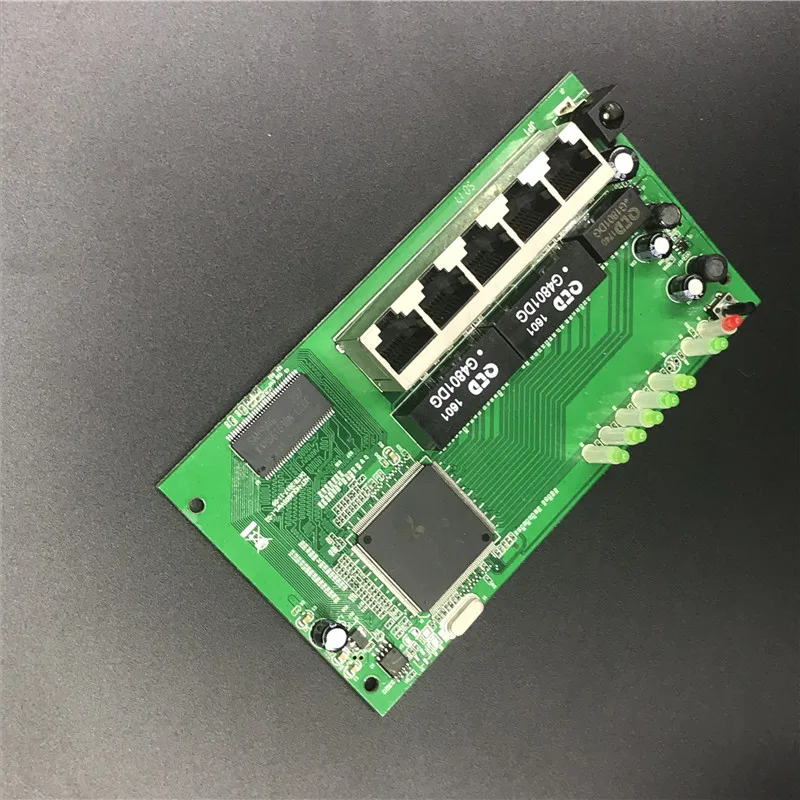

OEM 5 port Gigabit router module 10/100/1000M distribution field 5-port mini router modules OEM wired router module PCBA with RJ45
$28.99
Specs
clever residence terminal distribution system
1,1 wan 4 lan
2,10/100/1000m lan ports 4
3,unique broadband
4, 1 12 months guarantee
5 port Gigabit router module 10/100/1000M for residence multimedia distribution system
Description:
The ANDDEAR-G-5
Multifunctional Broadband Router is specifically designed for small enterprise, workplace and SOHO(Small Workplace/House Workplace) to entry the Web. It options robust features, excessive efficiency, and simple configuration router. The ANDDEAR-G-5 gives many administration features, together with system, DHCP server, digital server , DMZ host, firewall, and static routing desk.
The ANDDEAR-G-5 router gives versatile entry management, limiting workers or youngsters to browse chosen websites. It connects to the Web robotically or on demand and disconnects when idle to save lots of on community prices. Fast Setup Wizard is supported and pleasant assist pages are offered for each step.
Options
Complies with IEEE 802.3, IEEE 802.3u requirements
1 10/100/1000Mbps Auto-Negotiation WAN RJ45 port,
4 10/100/1000Mbps Auto-Negotiation LAN ports,
supporting Auto-MDI/MDIX
Shares knowledge and Web entry for Stations, connecting Web by means of PPPoE on demand and disconnecting when idle
Helps TCP/IP, PPPoE, DHCP, ICMP, NAT
Constructed-in NAT and DHCP server
supporting static IP tackle distributing
supporting IP tackle filtering, Area Identify filtering
Helps connecting/disconnecting Web on a specified time of day
Constructed-in Firewall supporting Area Identify filtering, and MAC tackle filtering
Helps Digital Server, Particular Utility, and DMZ host
Helps firmware improve,
Helps Distant and Net administration
Utility
SOHO broadband routers are broadly utilized in good residence wire distribution field system, the SME Web use and others.
Specs:
|
Requirements |
IEEE 802.3; IEEE 802.3u |
|
Ethernet Protocol |
CSMA/CD |
|
Ports |
WAN: 1 10/100/1000M Auto-MDI/MDIX RJ-45 Port |
|
LAN:4 10/100/1000M Auto-MDI/MDIX RJ-45 Ports |
|
|
Utility Protocols |
TCP/IP, PPPoE, DHCP, NAT |
|
Circulation Management |
IEEE 802.3x for Full duplex Backpressure for Half duplex |
|
LEDs |
Energy WAN: Hyperlink/Act LAN: Hyperlink/Act |
|
Energy |
Exterior, 7.5V~ 1A |
|
Working Temp. |
0ºC ~ 70ºC |
|
Working Humidity |
5% ~ 90percentRH, Non-Condensing |
|
Security & Emission |
ROSH, CE,FCC |
|
Dimension |
135*72.8*18MM |
Specification: OEM 5 port Gigabit router module 10/100/1000M distribution field 5-port mini router modules OEM wired router module PCBA with RJ45
|
