LCD Community Cable Tester Lan tester PoE Checker Inline PoE Voltage and Present Tester with Cable Tester checker the Ethernet

The NF-488 PoE checker is consists of two elements: an Emitter and a distant. It has features similar to normal and non-standard PoE gear detection, PoE energy on-line check, community cable continuity check, DC energy check, change loop-back check and different features. Due to this fact, it’s a good for safety monitoring, communication wires, built-in wiring and different weak present programs.

Options:
Check the data of the usual/non-standard PoE gadget, similar to voltage, polarity, midspan or endspan.
Determine the kind of PSE, it’s af or at normal.
Check of real-time energy consumed by PD gadgets in PoE energy provide programs.
Check the open, brief, cross standing within the community cable.
Check the facility consumed by DC home equipment.

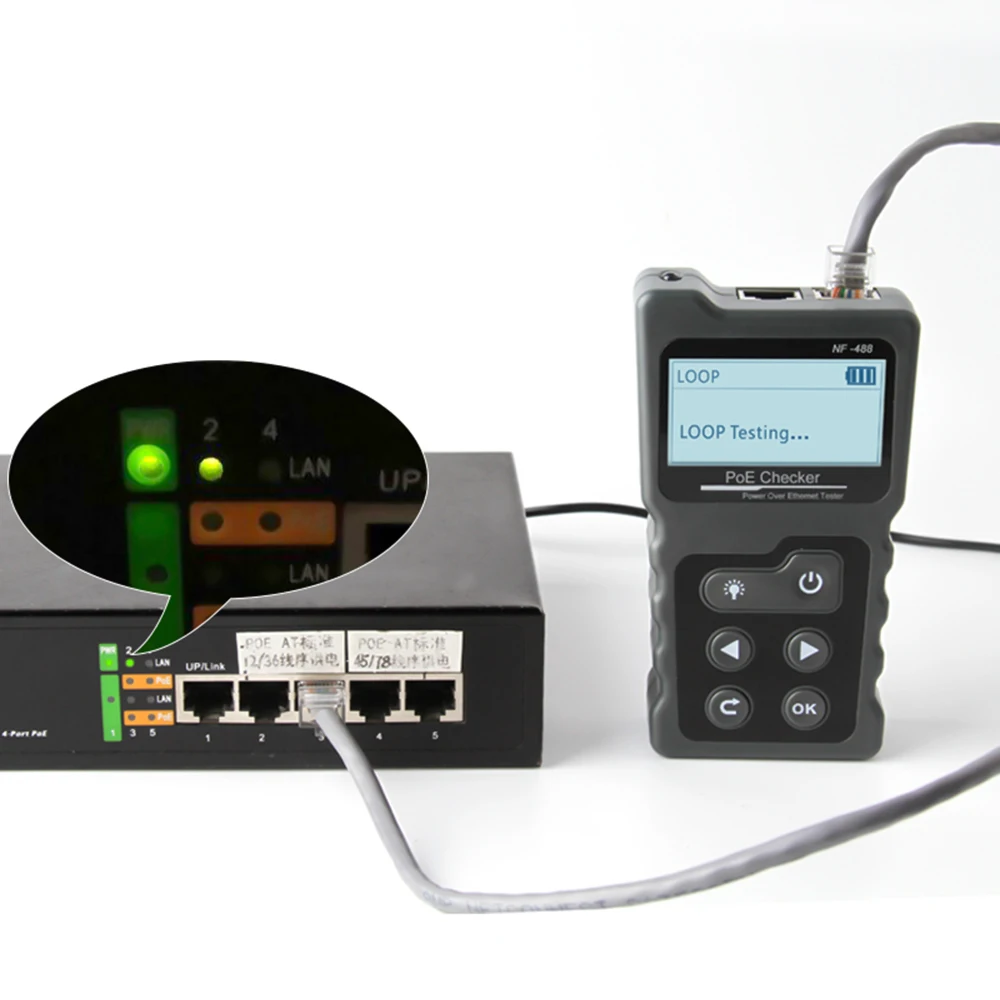

The loop check perform of the change.

Specs:
Materials: ABS

Transmitter Specification:
CONTINUITY FUNCTION:
Cable Sorts: STP/UTP
Max Testing Vary: 600m
Wire Mapping: Emitter + distant, emitter + change/routor

POE FUNCTION:
Check Vary: DC5-60V PoE change
Customary Determine: 802.3af/at(normal/non-standard)
Check Vary Energy: 0-18W

POWER FUNCTION:
Voltage Check Vary: DC0-60V
Present Check Vary: 0-3A
Energy Check Vary: 0-180W

Show: LCD 128*64mm, with again gentle
Enter Voltage Safety: DC48V, 5mA
Max Working Present: ≤80mA
Loopback: Suitable with 10M, 100M,1000M change
Energy Provide: 3 * 1.5V AAA battery (Not included)

Distant Specification:
Ports: RJ45
Perform: Wire mapping for community cable
Enter Voltage Safety: DC48V, 5mA

Emitter Dimension: Approx. 12.5 * 7 * 2.8cm / 4.92 * 2.76 * 1.1in
Distant Dimension: Approx. 6.5 * 3.7 * 2.3cm / 2.56 * 1.46 * 0.91in
Emitter Weight: Approx. 123g / 4.33oz
Distant Weight: Approx. 24g / 0.86oz
Package deal Weight: Approx. 301g / 10.64oz
Package deal Dimension: Approx. 22.5 * 11 * 4cm / 8.86 * 4.33 * 1.58in

Package deal Record:
1 * Emitter
1 * Distant
1 * Crocodile Clip Check Line
2 * Cable Lead
1 * Carry Bag
1 * Person Guide (English)
