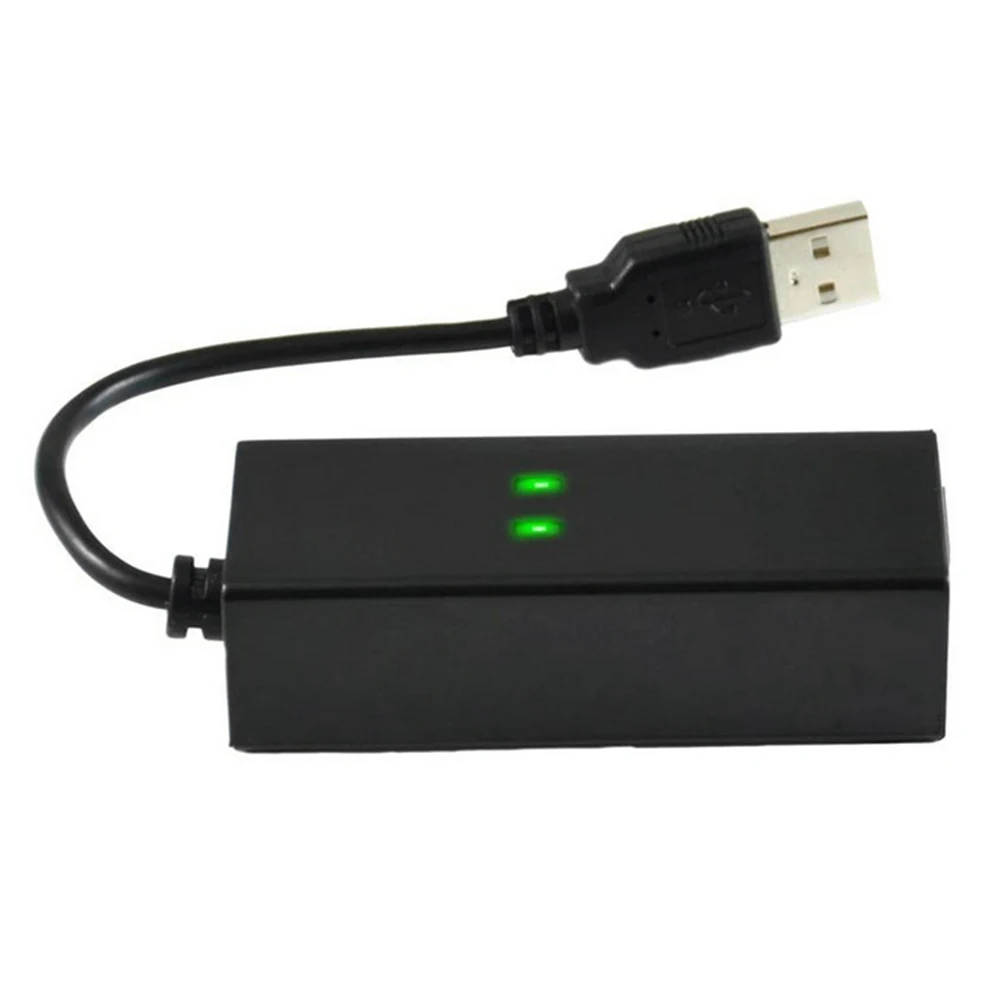

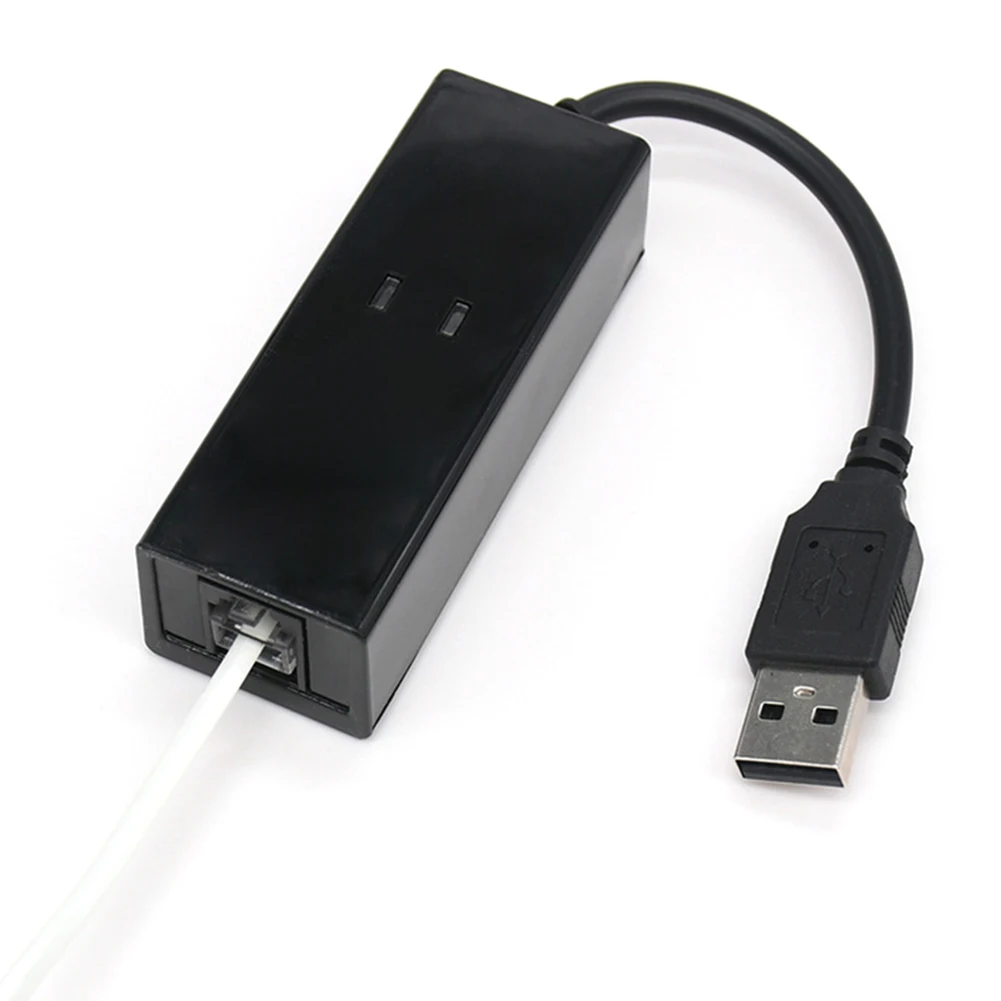

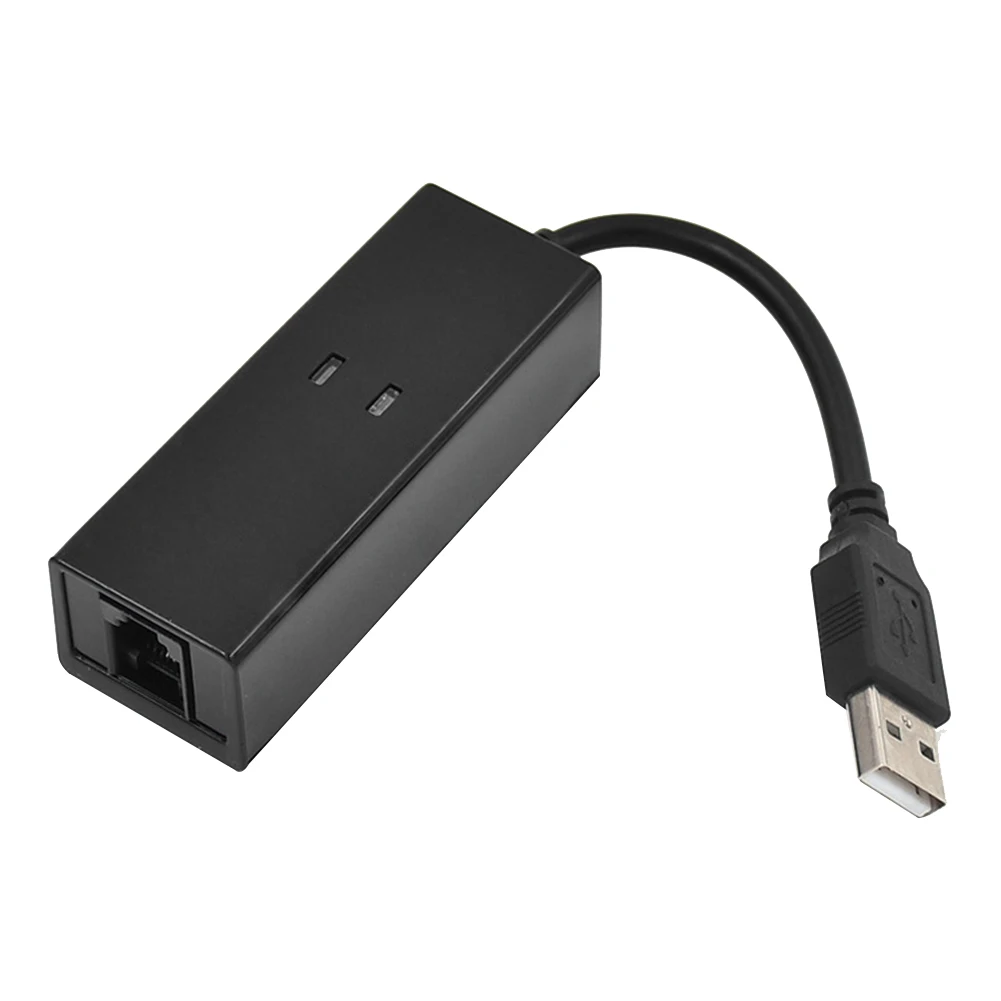

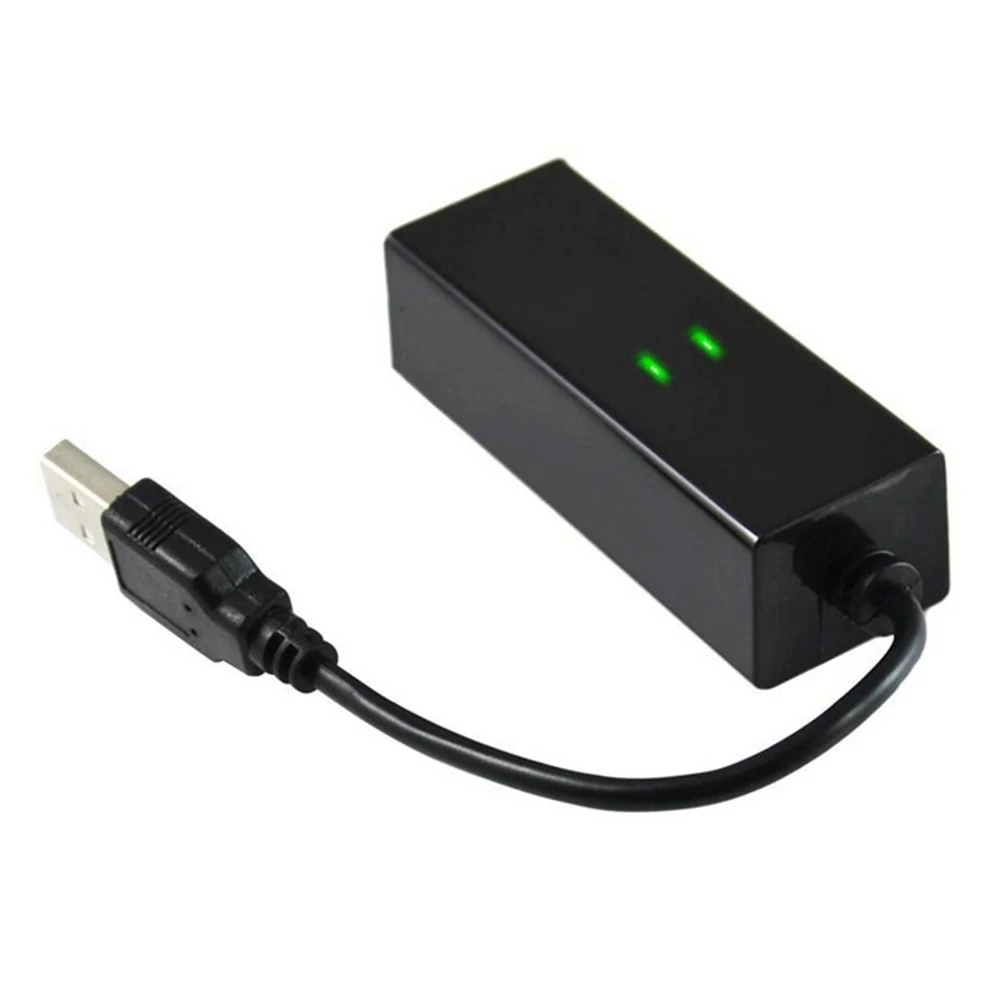

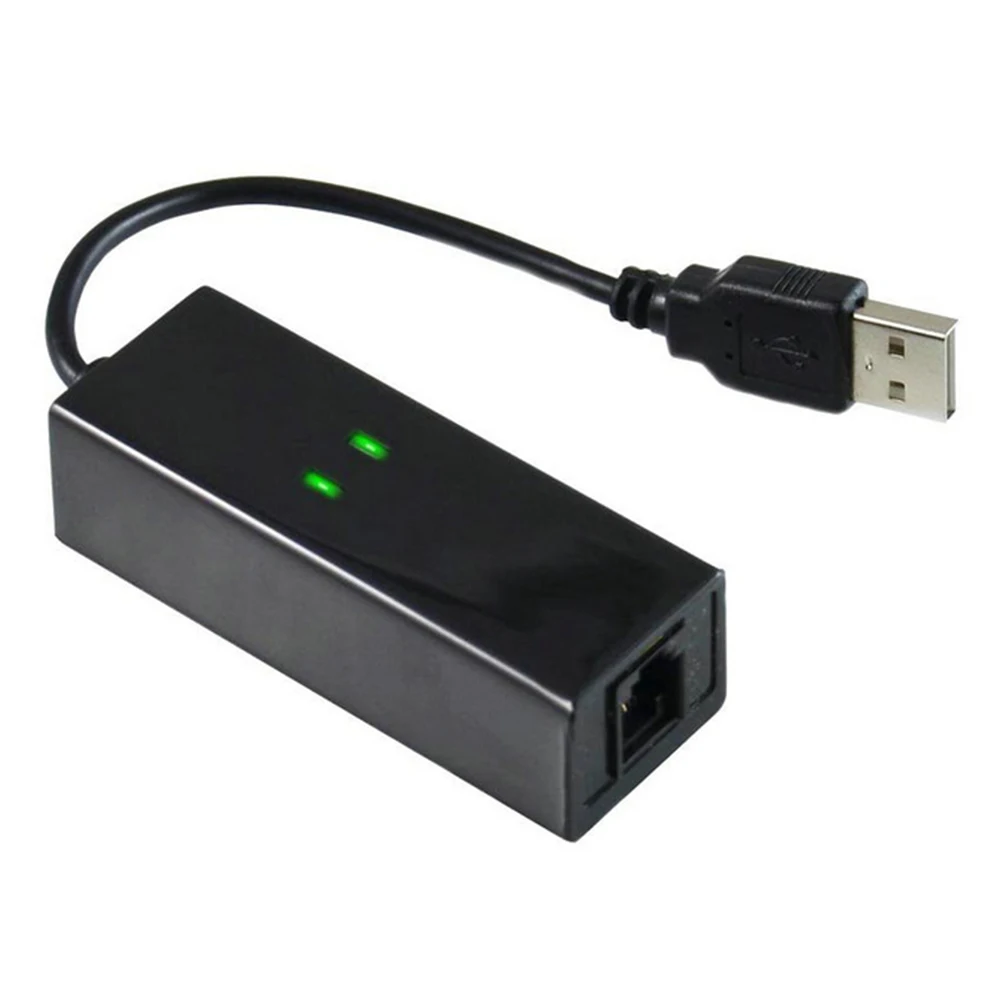

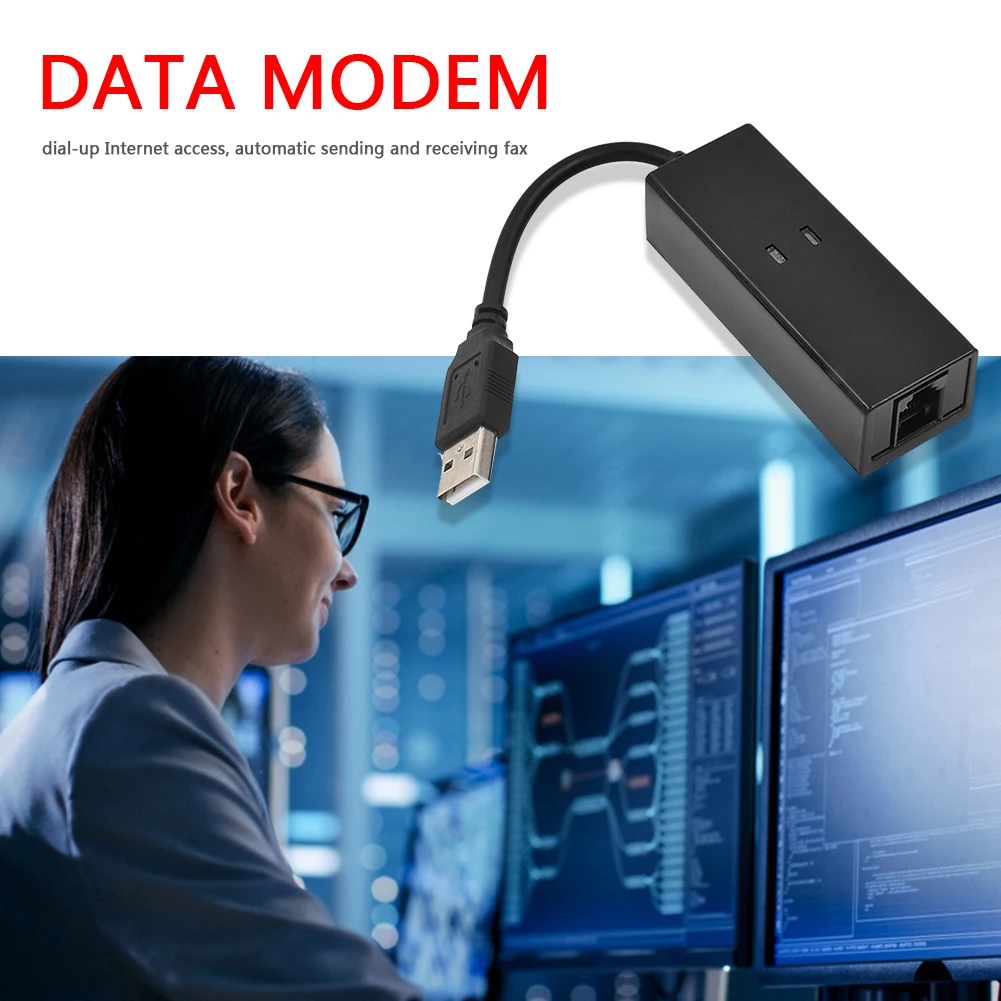

56K USB Knowledge/Fax Phone Modem Single Port Dial-Up Cable for Home windows XP Win 8 Win 7
Characteristic:
Communication Protocol: Knowledge protocol ITU-T V.92, V.90, V.34, V.32 bis, V.32, V.22 bis, V.22, V.23, V.21, Bell 212A, 103 .
Knowledge Error Correction: V.42 LAPM and MNP2-4.
Knowledge Compression: V.44, V.42 bis and MNP5.
Command System: EIA / TIA 578 Class 1, suitable with Hays AT command set.
Move Management Methodology: Software program (XON/XOFF) or {hardware} (RTS/CTS) stream management.

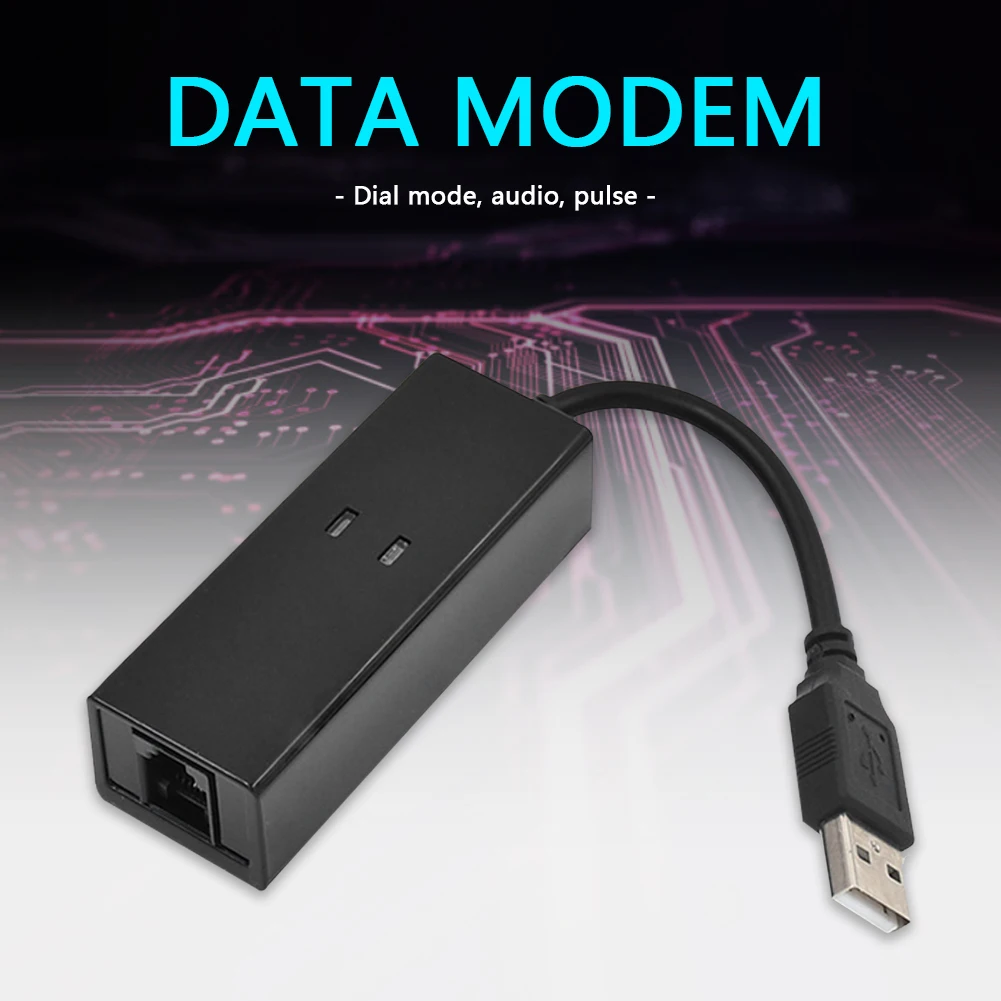

Dialing Methodology: Tone, Pulse.
Safety Circuit: Quick response semiconductor thunder safety circuit, its anti-thunder perform.

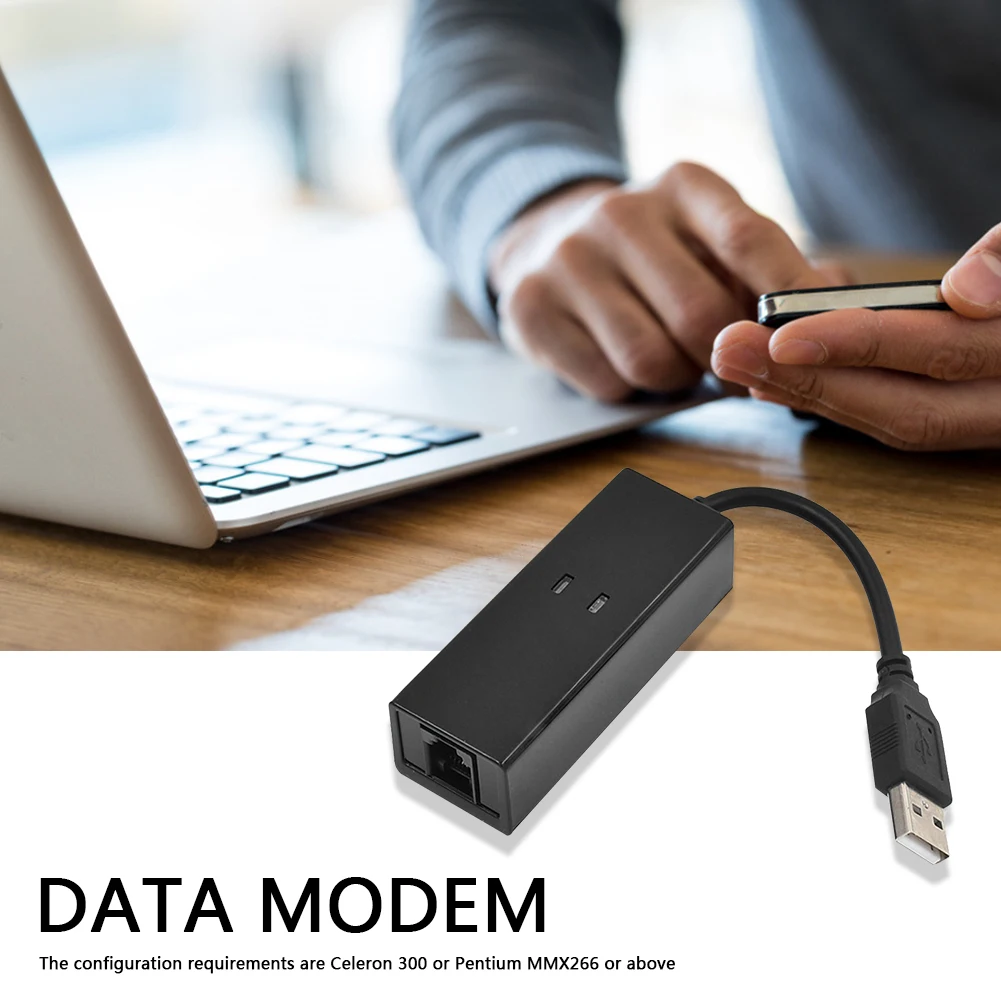

Configuration Necessities: for Celeron300 or Pentium MMX266 or above.
Specification:
Principal Chip: for Conexant06836
Kind: Abnormal Dial-Up Modem
Class: Exterior Kind
Interface Kind: USB
Transmission Price: 56Kbps
Transmission Protocol: V.90/K56flex
Fax/Protocol: V.17, V.29, Group 3, Class 1

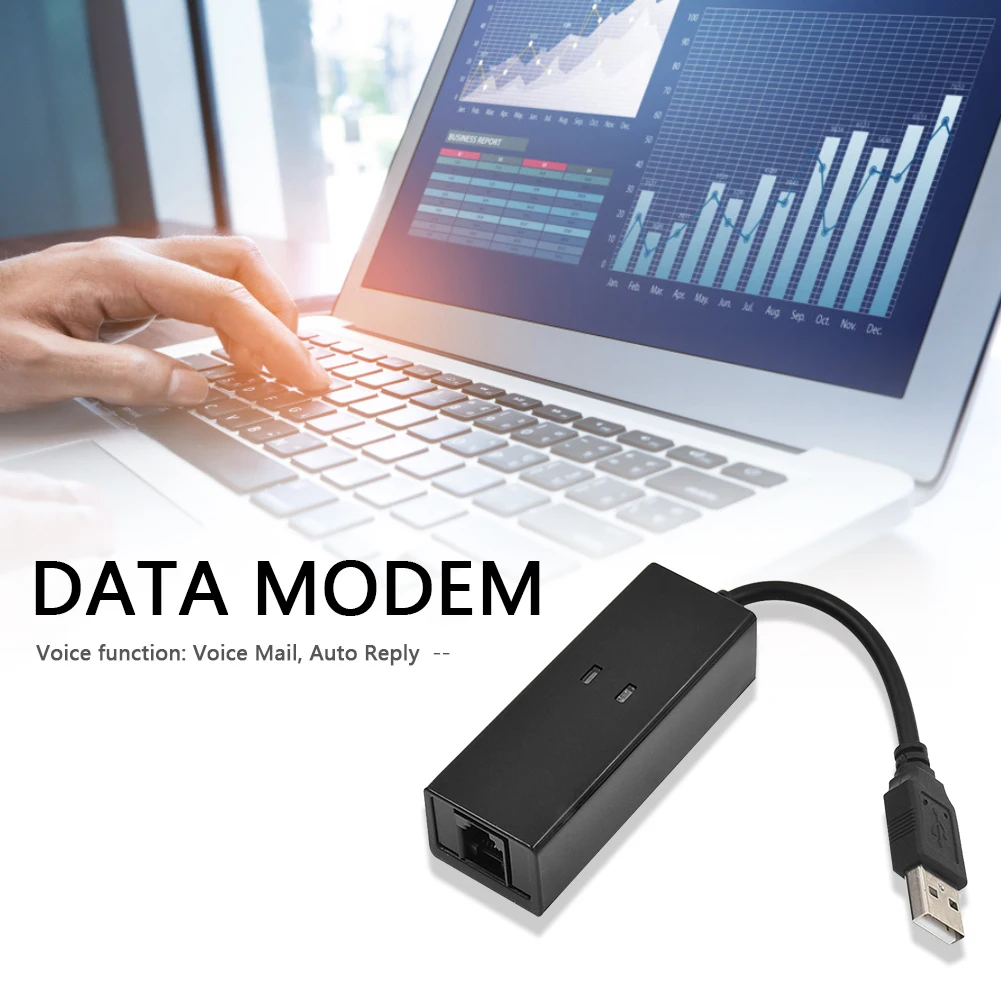

Voice Operate: Voice Mail, Automated Reply
Principal Operate: Dial-Up and Web Entry, Automated Fax Sending and Receiving

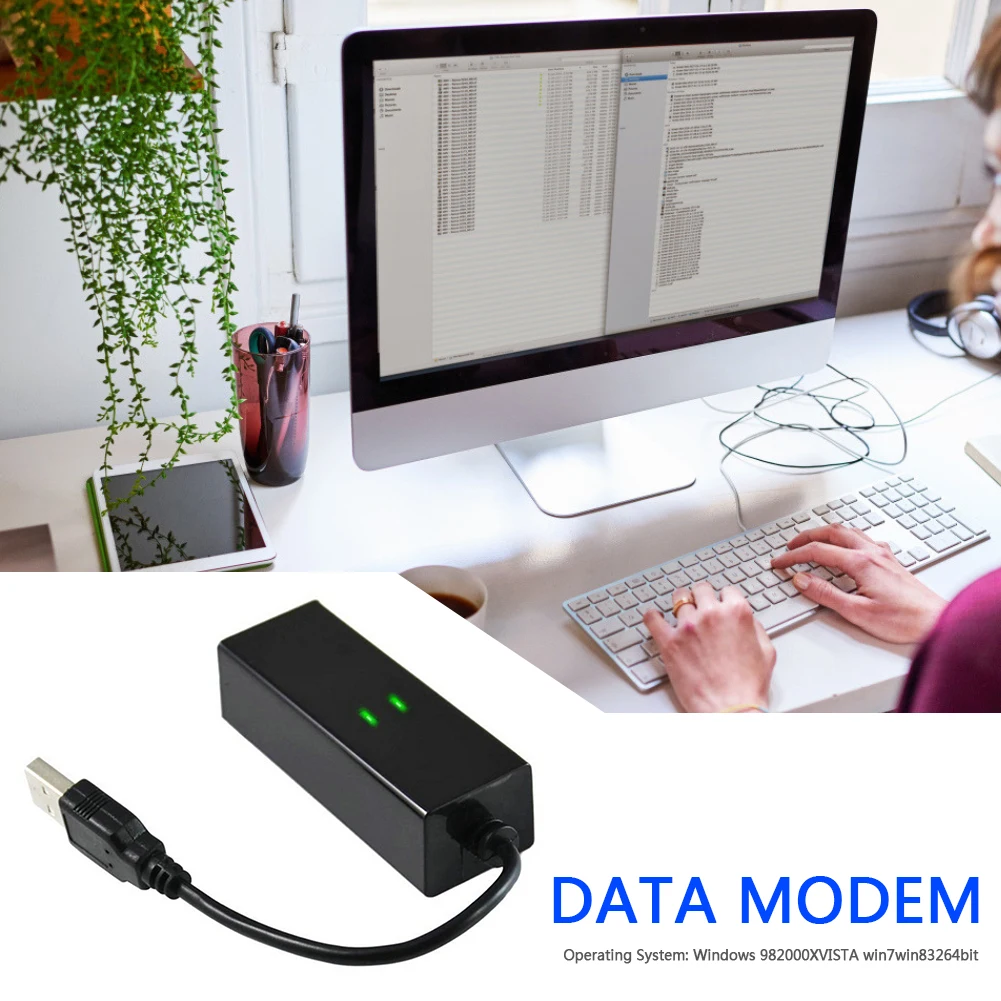

Working System: for Home windows 98/2000/XP/Vista/WIN7/WIN8 32/64bit

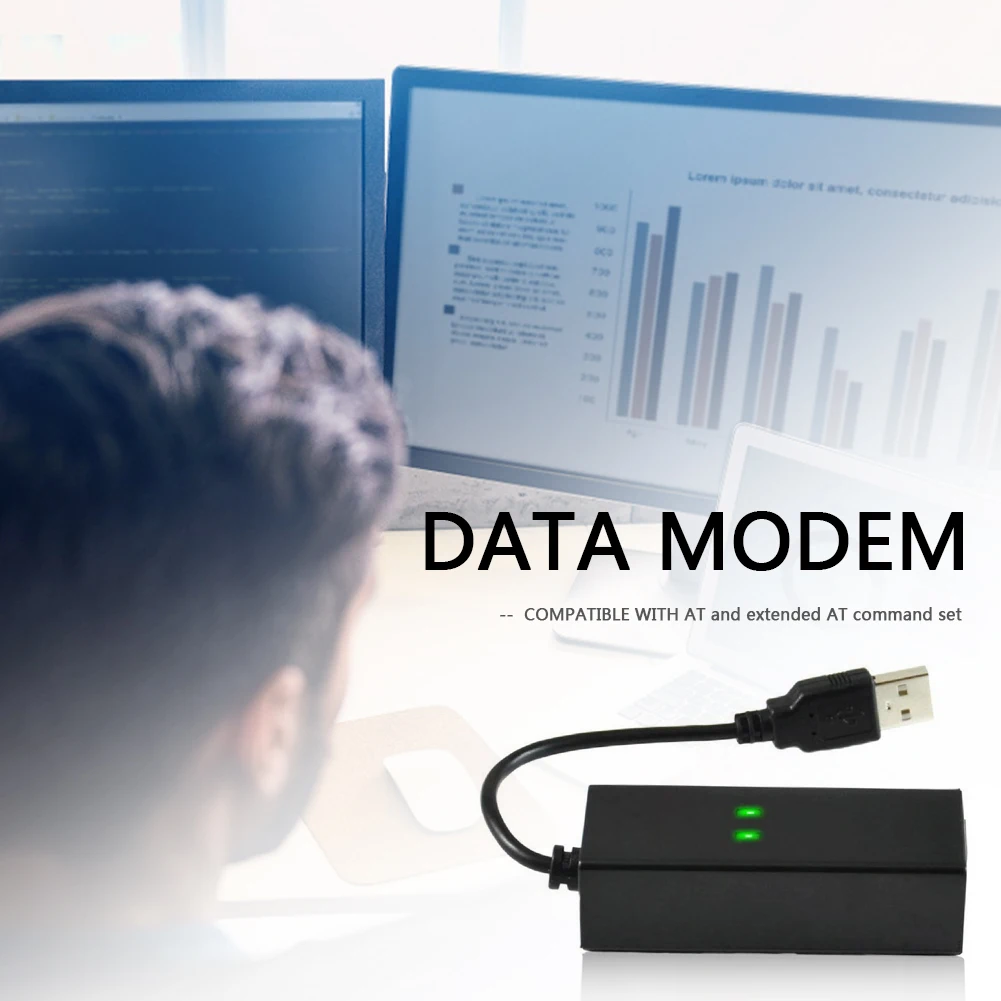

Compatibility: Suitable with AT and prolonged AT command set
Set up Methodology:
1. Join the Modem: Join the modem to the USB port of the pc, and plug the phone line into the opposite finish of the modem. If you’ll want to join the phone, you may join the exterior line to the phone, after which join the road from the extension port of the phone to the modem.
2. Set up the Driver:
Put the motive force CD into the CD-ROM drive, plug within the modem, the pc prompts to search out new hardware-select handbook installation-click browse, choose the cx-fu02/winxp folder on the CD (for Win7 system will routinely set up the motive force usually, no have to manually set up). After the motive force is put in, open the management panel-there will probably be a modem named USB information fax modem within the phone modem possibility.
3. Set up the fax software program (Take the fax software program that comes with the system for instance): For win7, you solely have to Management Panel-Printers Faxes-Double Click on FAX Printer-Instruments-Fax Printer Configuration-Machine, and verify the field the place sending and receiving are allowed Sure, for XP system wants to put in fax first.
Word:
1. Because of the completely different monitor and lightweight impact, the precise colour of the merchandise is perhaps barely completely different from the colour confirmed on the photographs. Thanks!
2. Please enable 1-3mm measuring deviation attributable to handbook measurement.

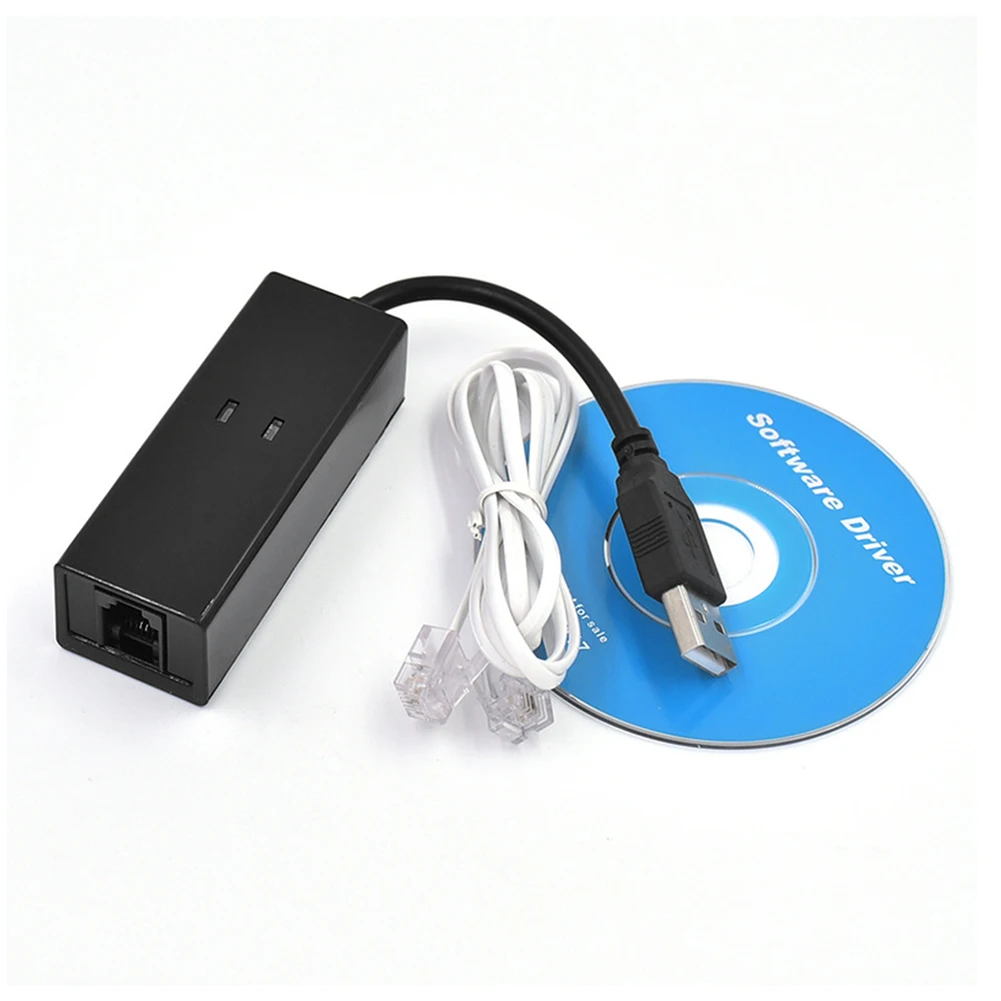

1 X Knowledge/Fax Modem
1 X Cable
1 X CD Driver
