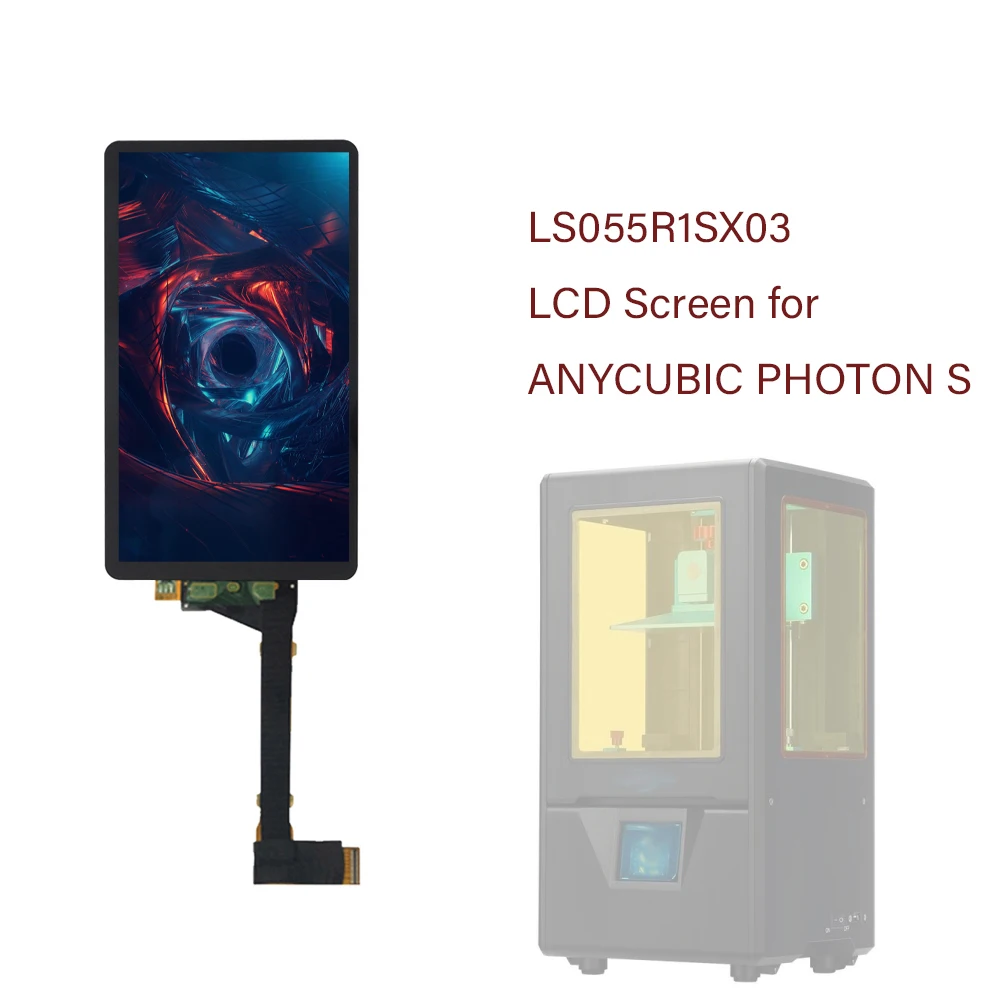

Appty To ANYCUBIC Photon S 3D Printer 2K LCD Display With Glass 5.5 inch LS055R1SX03 2K Mild Curing Show Display No Backlight

The 2KLCD Display with out backlight

※Immediate：Because of the skilled equipment, particular person customers might not be capable to change them by themselves. Please go to the shop for skilled upkeep after receiving them. If you happen to function improperly and trigger product injury, you want to bear the duty by your self.

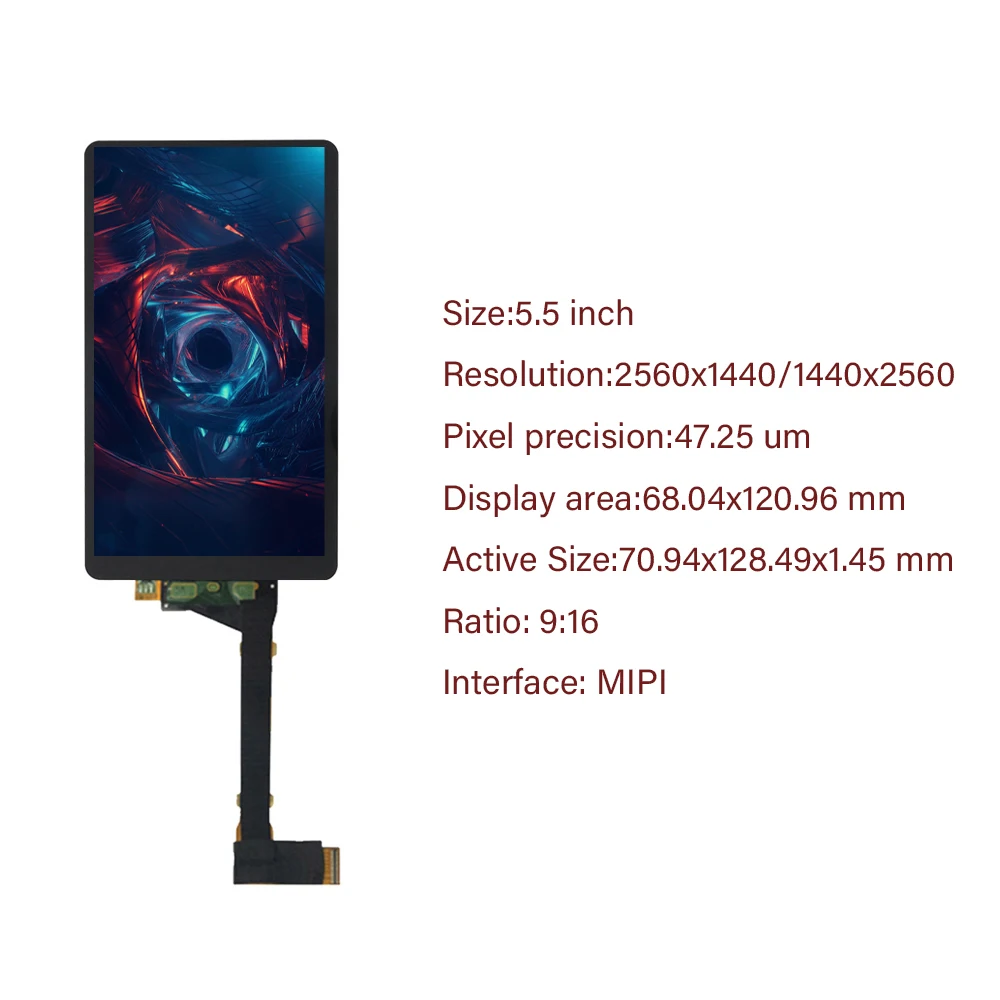

★ModuleDimension:70.94(W)mm*128.26(H)mm*1.35(t)mm(Excluding I/F -FPC and digital parts)

★Lively Space Dimensions:68.04(W)mm*120.96(H)mm(5.46”)

★Pixel Pitch:0.04725(W)mm*0.04725(H)mm(538ppi)

★Decision:1440*2560

★Colour Pixel Association:RGB Vertical Stripe

★Show Mode:Transmissive Kind,Usually Black Mode,In-Airplane Switching Mode

★Variety of Colours:16,777,216 Colours

★Backlight:Mild Emitting Diode(LED),14LEDs are 2 parallel,7 collection connection

★Backlight present:20mA/LED(typ)

★Energy Provide Voltage:AVDD=5.5+/-0.1V AVEE=-5.5+/-0.1 V

※Observe:

Interface I/O Energy provide:VDDI=1.8=/-0.1V

The identical voltage as “H” stage of a buyer’s interface sign have to be provided to VVDI

Interface:MIPI_DSI Video mode(4-Lan x2-port)

Methodology of Inversion:Column Inversion

Floor Remedy:HC-Polarizer(Hardness:3H)★ Relevant Fashions:as the image exhibits

✔Good spare half to restore your gadget, and make it work correctly

✔Skilled set up is very advisable

✔All merchandise can be examined earlier than they’re issued. We normally use three layers of packaging: foam paper + cardboard containers + waterproof tape.

✔Please verify the model you want earlier than shopping for to keep away from issues throughout use.

✔We’ll ship the parcels inside 1-3 days after purchaser’s fee is verified by Aliexpress.

Observe:Our firm helps wholesale and retail purchases. If you want to buy bigger portions and different sizes, please go away us a message to make sure that you’ve got stock on the time of buy. We’ll suggest a extra appropriate product for you. Please contact us when you have any questions. I want you a cheerful buying, pal！！
