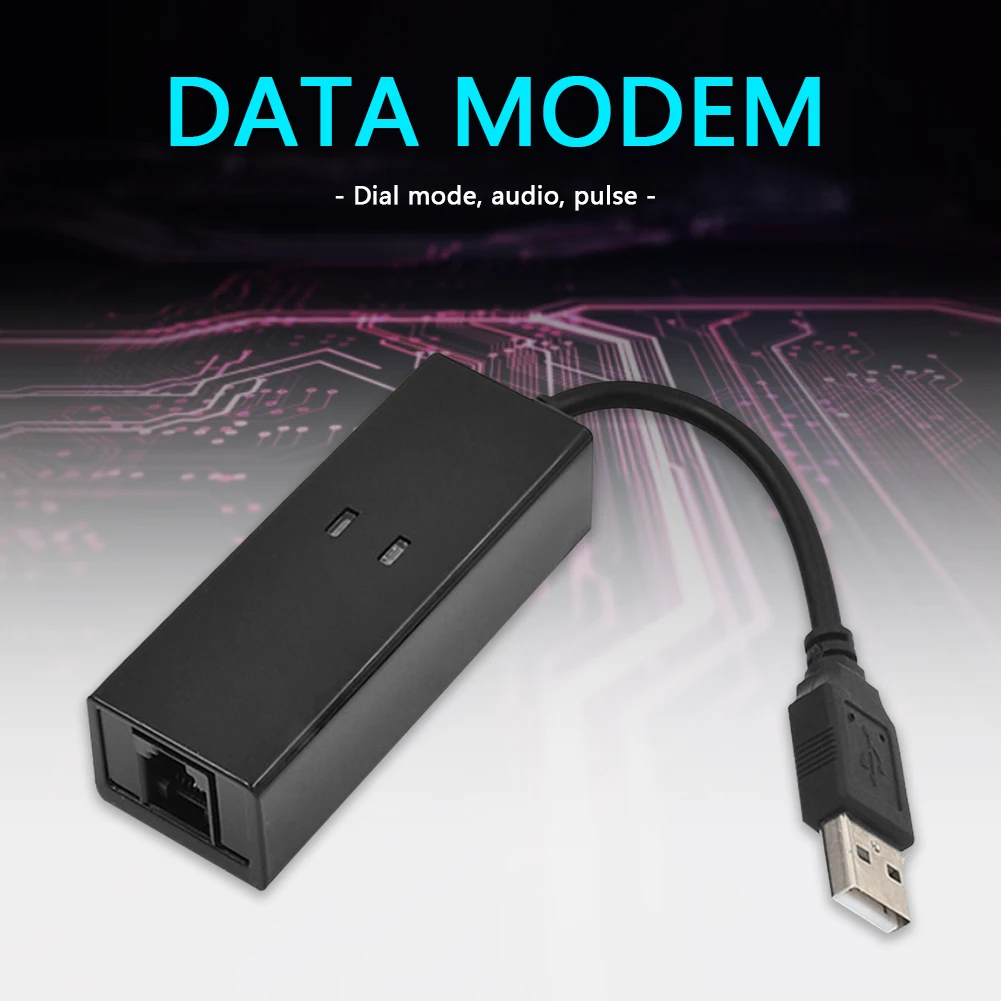

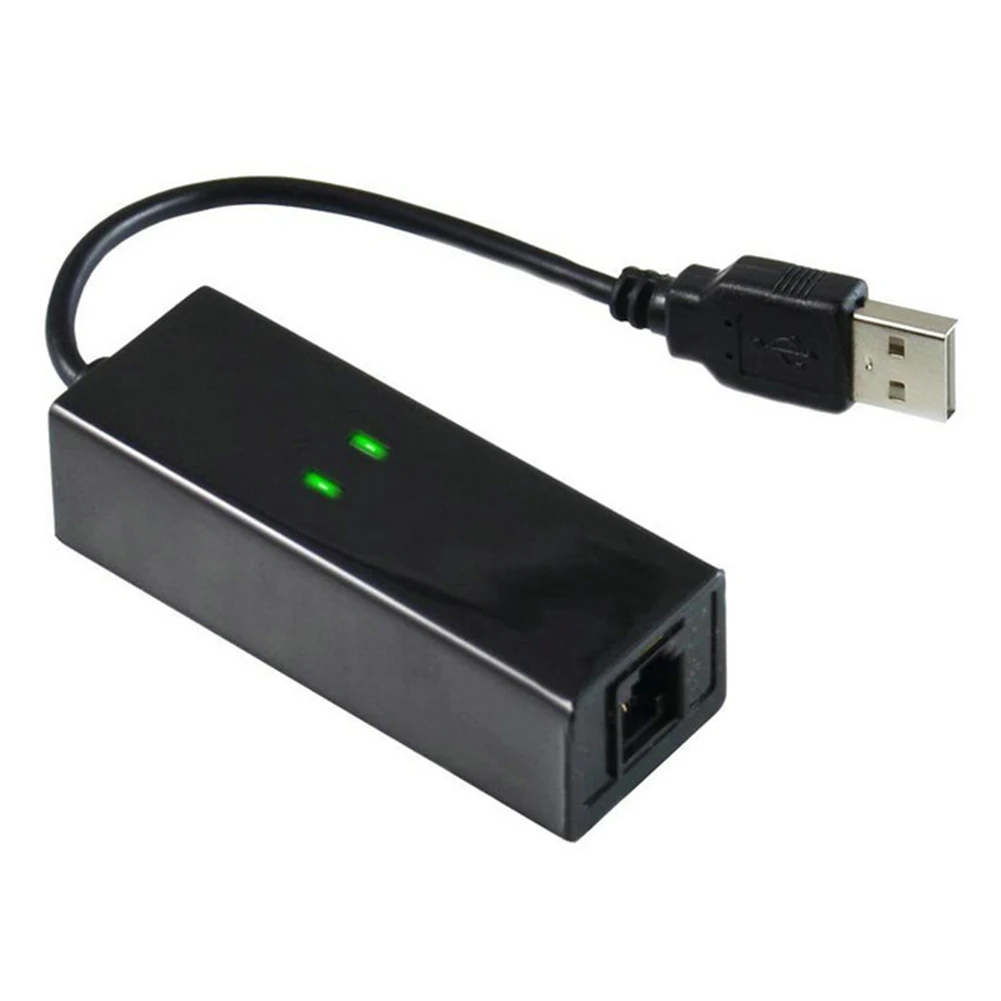

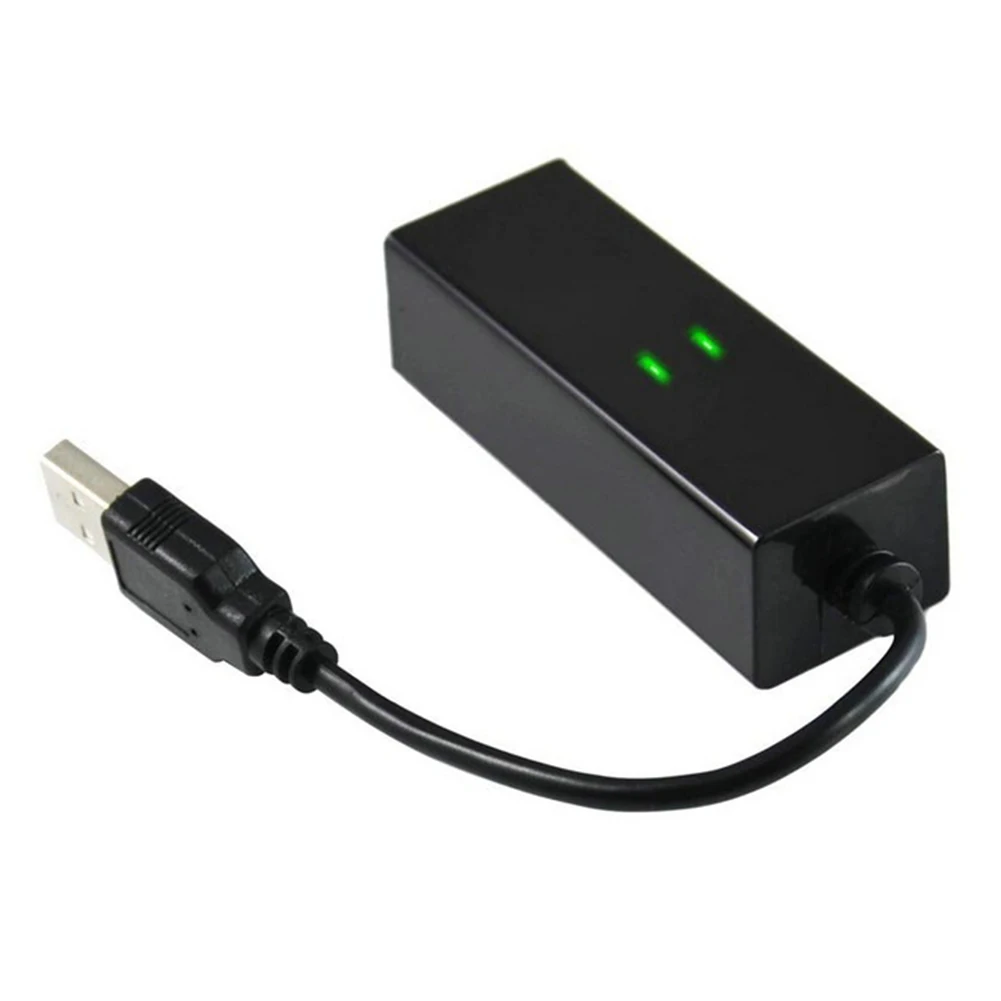

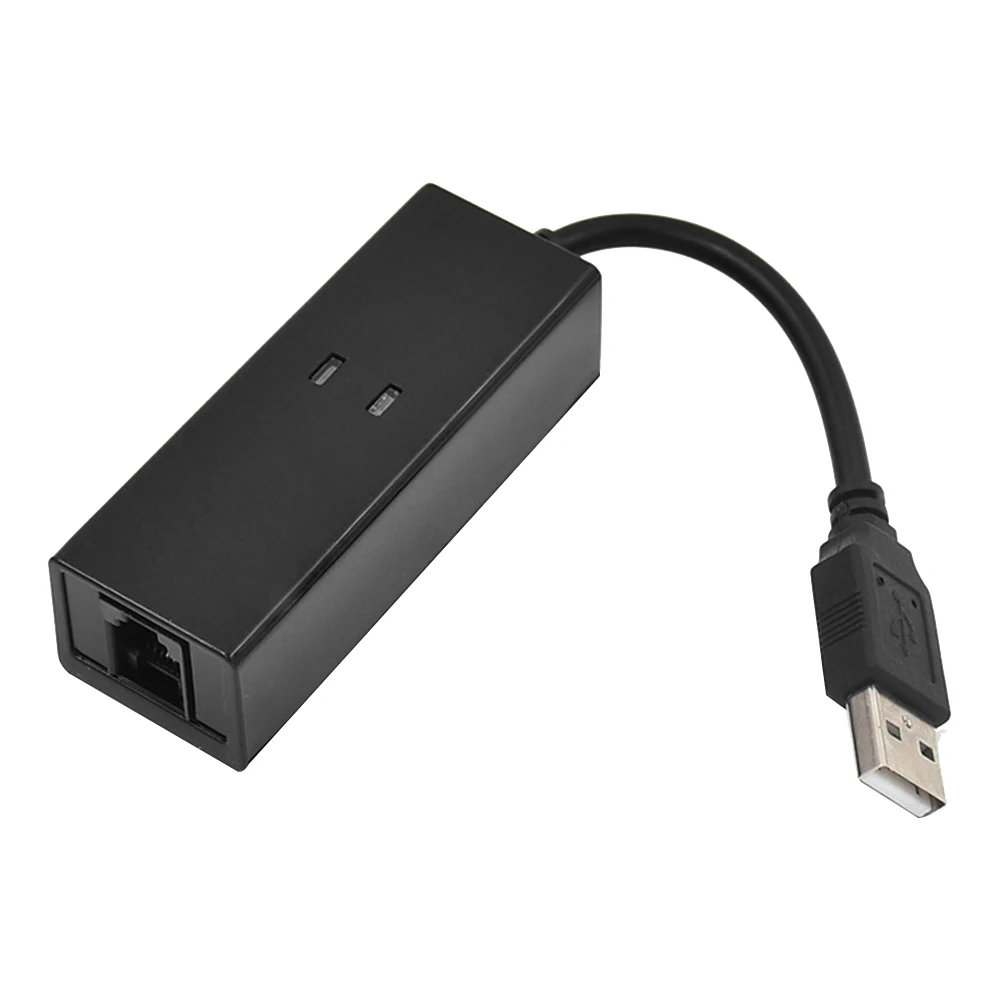

56K USB Knowledge/Fax Phone Modem Single Port Dial-Up Cable for Home windows XP Win 8 Win 7 Peculiar Dial-Up Modem

56K USB Knowledge/Fax Phone Modem Single Port Dial-Up Cable for Home windows XP Win 8 Win 7
Function:
Communication Protocol: Knowledge protocol ITU-T V.92, V.90, V.34, V.32 bis, V.32, V.22 bis, V.22, V.23, V.21, Bell 212A, 103 .
Knowledge Error Correction: V.42 LAPM and MNP2-4.
Knowledge Compression: V.44, V.42 bis and MNP5.
Command System: EIA / TIA 578 Class 1, appropriate with Hays AT command set.
Movement Management Methodology: Software program (XON/XOFF) or {hardware} (RTS/CTS) circulation management.
Dialing Methodology: Tone, Pulse.
Safety Circuit: Quick response semiconductor thunder safety circuit, its anti-thunder perform.
Configuration Necessities: for Celeron300 or Pentium MMX266 or above.

Specification:
Primary Chip: for Conexant06836
Kind: Peculiar Dial-Up Modem
Class: Exterior Kind
Interface Kind: USB
Transmission Charge: 56Kbps
Transmission Protocol: V.90/K56flex
Fax/Protocol: V.17, V.29, Group 3, Class 1

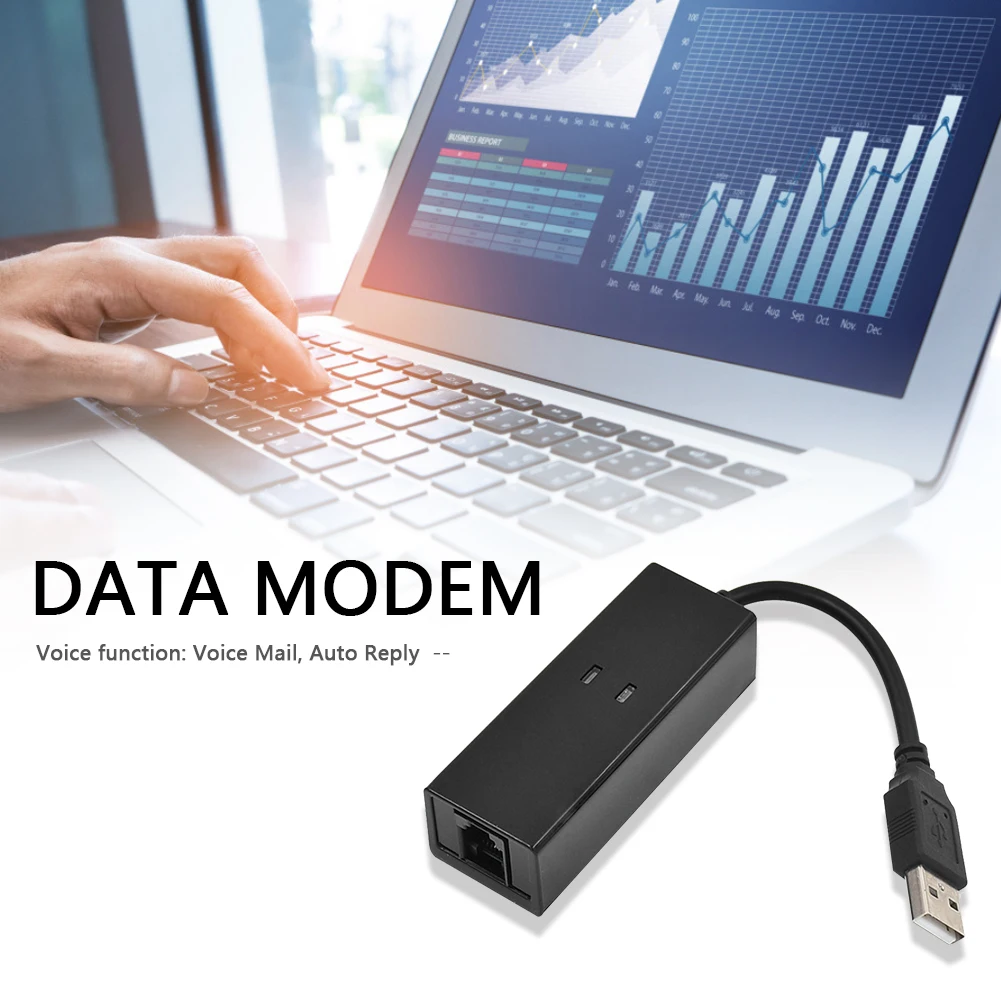

Voice Perform: Voice Mail, Automated Reply
Primary Perform: Dial-Up and Web Entry, Automated Fax Sending and Receiving

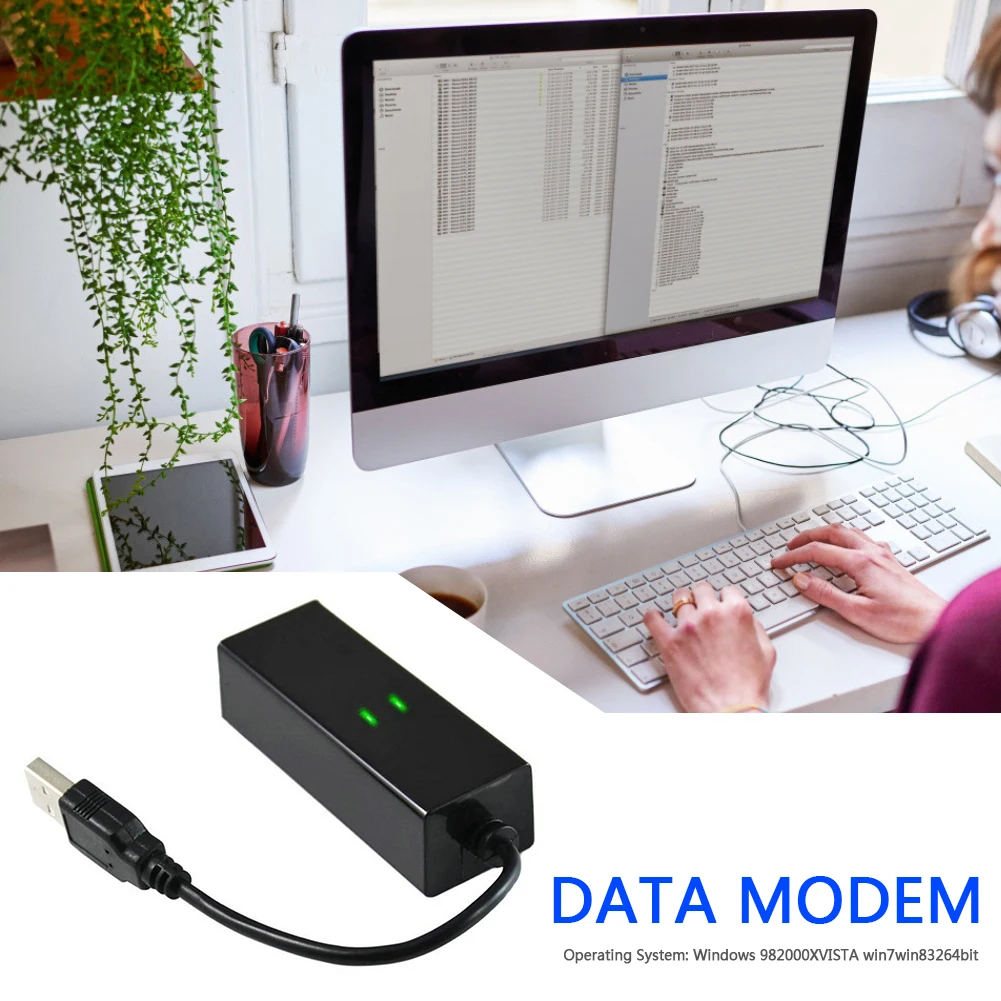

Working System: for Home windows 98/2000/XP/Vista/WIN7/WIN8 32/64bit
Compatibility: Suitable with AT and prolonged AT command set

Set up Methodology:

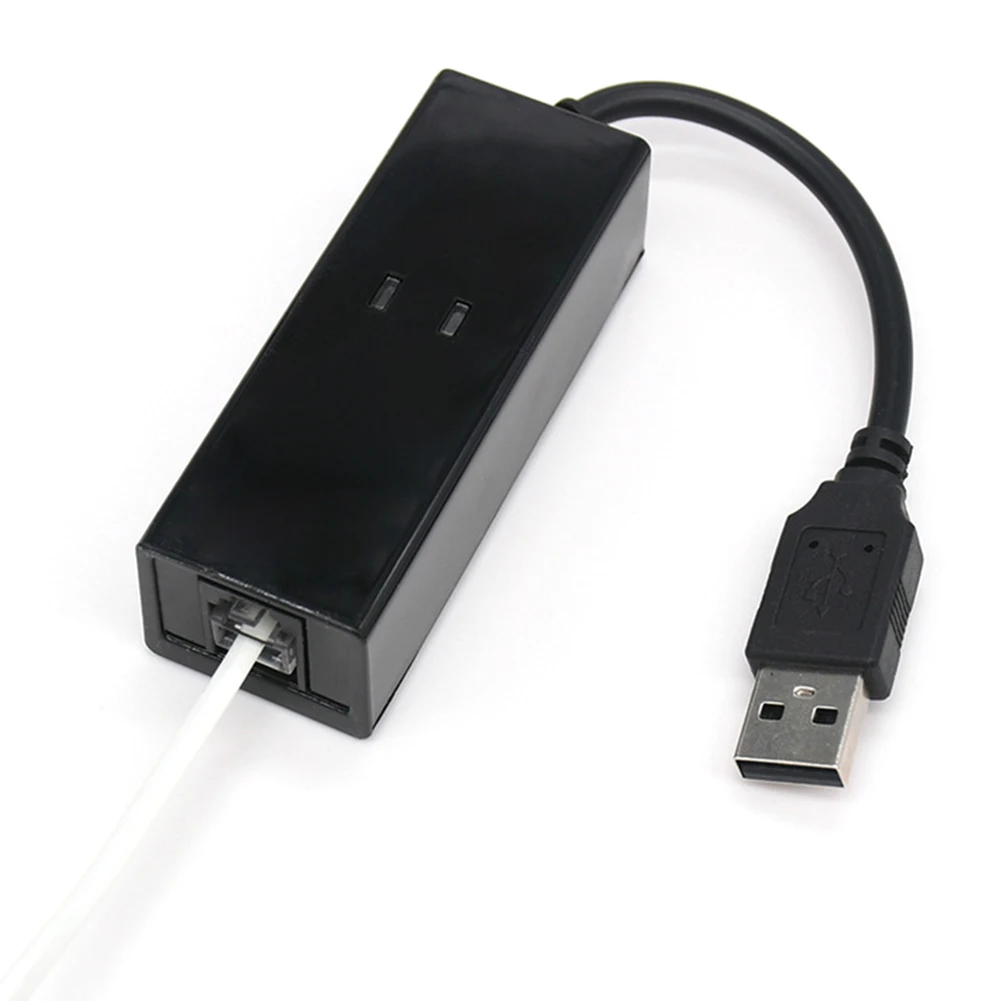

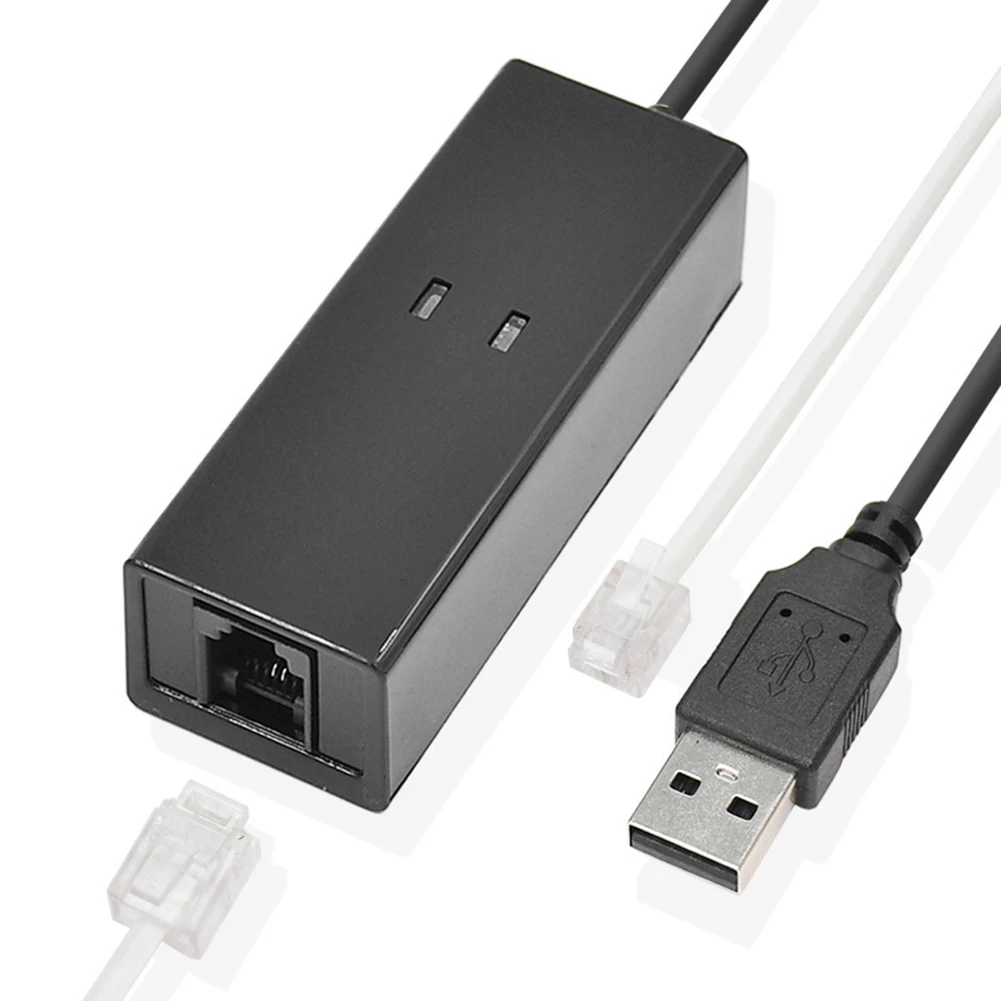

1. Join the Modem: Join the modem to the USB port of the pc, and plug the phone line into the opposite finish of the modem. If it is advisable join the phone, you possibly can join the exterior line to the phone, after which join the road from the extension port of the phone to the modem.
2. Set up the Driver:
Put the driving force CD into the CD-ROM drive, plug within the modem, the pc prompts to seek out new hardware-select handbook installation-click browse, choose the cx-fu02/winxp folder on the CD (for Win7 system will routinely set up the driving force usually, no have to manually set up). After the driving force is put in, open the management panel-there might be a modem named USB knowledge fax modem within the phone modem choice.
3. Set up the fax software program (Take the fax software program that comes with the system for instance): For win7, you solely have to Management Panel-Printers Faxes-Double Click on FAX Printer-Instruments-Fax Printer Configuration-Gadget, and verify the field the place sending and receiving are allowed Sure, for XP system wants to put in fax first.

Observe:
1. Because of the totally different monitor and lightweight impact, the precise coloration of the merchandise may be barely totally different from the colour confirmed on the images. Thanks!
2. Please permit 1-3mm measuring deviation because of handbook measurement.

1 X Knowledge/Fax Modem
1 X Cable
1 X CD Driver
