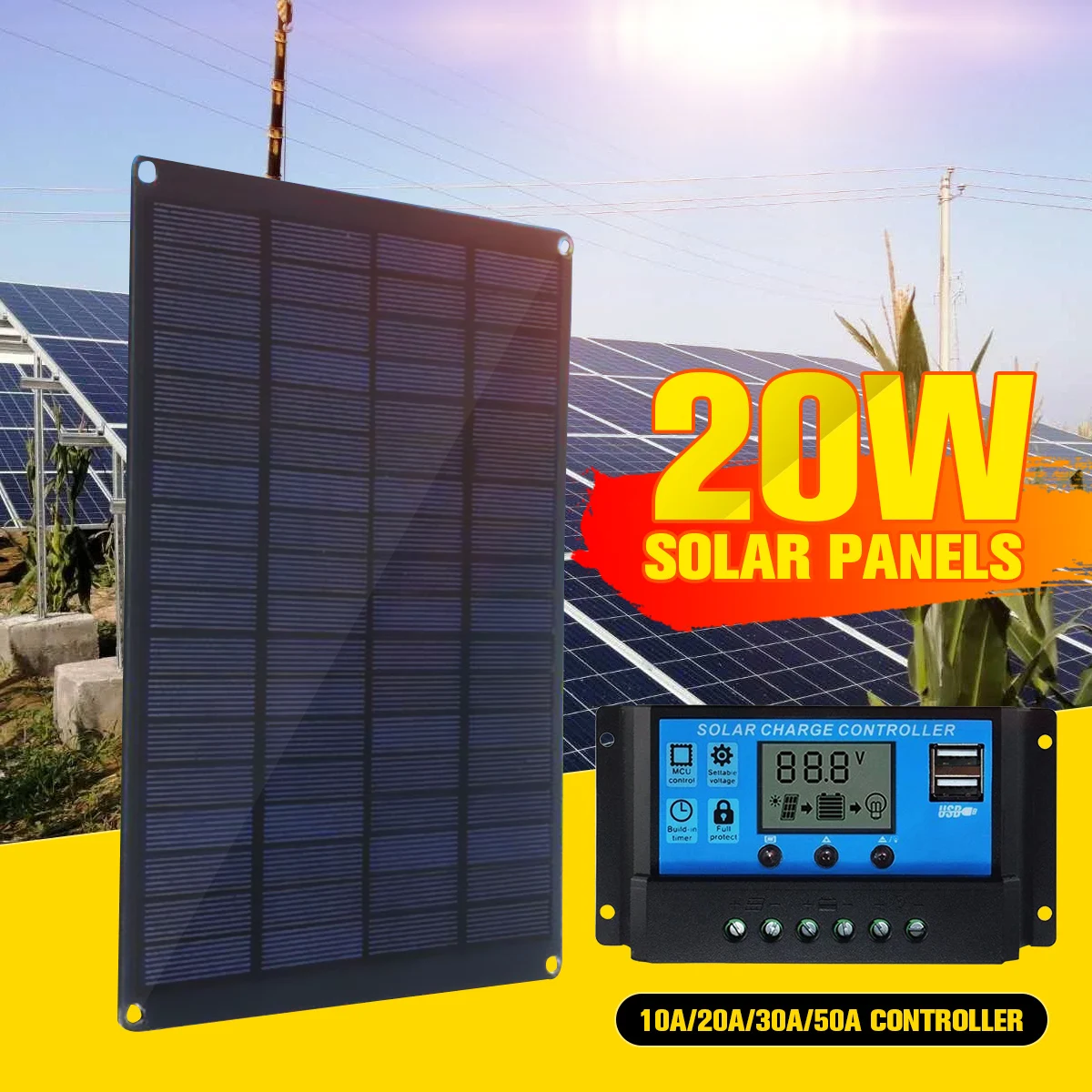

20W 12V 18V Photo voltaic Panel with battery Clip+10/20/30/50A Photo voltaic Automotive Charger Controller Photo voltaic Cells for Out of doors Tenting Mountain climbing

Package deal Included:
1 x photo voltaic panel
1 x battery clip

Specs:
Materials: Monocrystalline silicon
Measurement: Approx.23cmx17cm/9.0×6.6 inch
Voltage: 12V
Most energy: 20W
Most safety stage: 5A
Most voltage: 18V

Options:
1.Sturdiness, waterproof and longevity.
2.Light-weight and straightforward to make use of, and straightforward to hold.
3.Excessive conversion fee, excessive effectivity calculation, glorious effectivity.
4.Use overcharge safety, safety in the wrong way.
5.Small noise, excessive effectivity.
6.Ultimate for outside biking, mountaineering, mountaineering, tenting, journey, and so forth.

Discover:
– Please enable 1-3cm error because of guide measurement and be sure you don’t thoughts earlier than ordering.
– Please perceive that colours could exist chromatic aberration because the completely different placement of images.

Package deal Included:
1 x Controller

Specs:
Mannequin: PWM
Buck cost: 28.8V
Float cost: 27.4V
USB output: 5V/3A
Working present: 10A
Self-consume: Discharge cease: 21.4V
Voltage: DC 12V/24V
Max photo voltaic enter: Rated working present: ≤20A
Discharge reconnect: 25.2V
Working temperature: -35℃~60℃
Output voltage: 12V/24V Mechanically distinguish voltage

Options:
1.Construct-in industrial micro controller.
2.Totally 4-stage PWM cost administration.
3.One-key setting,digital show, auto reminiscence operate.
4. Reverse present protections, low warmth productions.
5.Construct-in short-circuit protections, open-circuit protections, reverse protections, over-load protections.

　
Security Directions:
1.Ensure your battery has sufficient voltage for the controller to acknowledge the battery kind earlier than first set up.
2.The battery cable must be as brief as attainable to attenuate loss.
3.The regulator is barely appropriate for lead acid batteries: OPEN, AGM, GEL(It isn’t suited to nickel metallic hydride, lithium ions or different batteries).
4.The cost regulator is barely appropriate for regulating photo voltaic modules. By no means join one other charging supply to the cost regulator.
　 　
System Connection:
1.Join the battery to the cost regulator – plus and minus.it can present 1 ,if it detects 12V battery, 2 if it detects 24V battery.
2.Join the photovoltaic module to the regulator – plus and minus.
3. Join the patron to the cost regulator – plus and minus.
