10PCS/lot SC/ UPC-SC/ APC Simplex mode LSZH Fiber Optic Patch Wire For CATV Community
$13.50

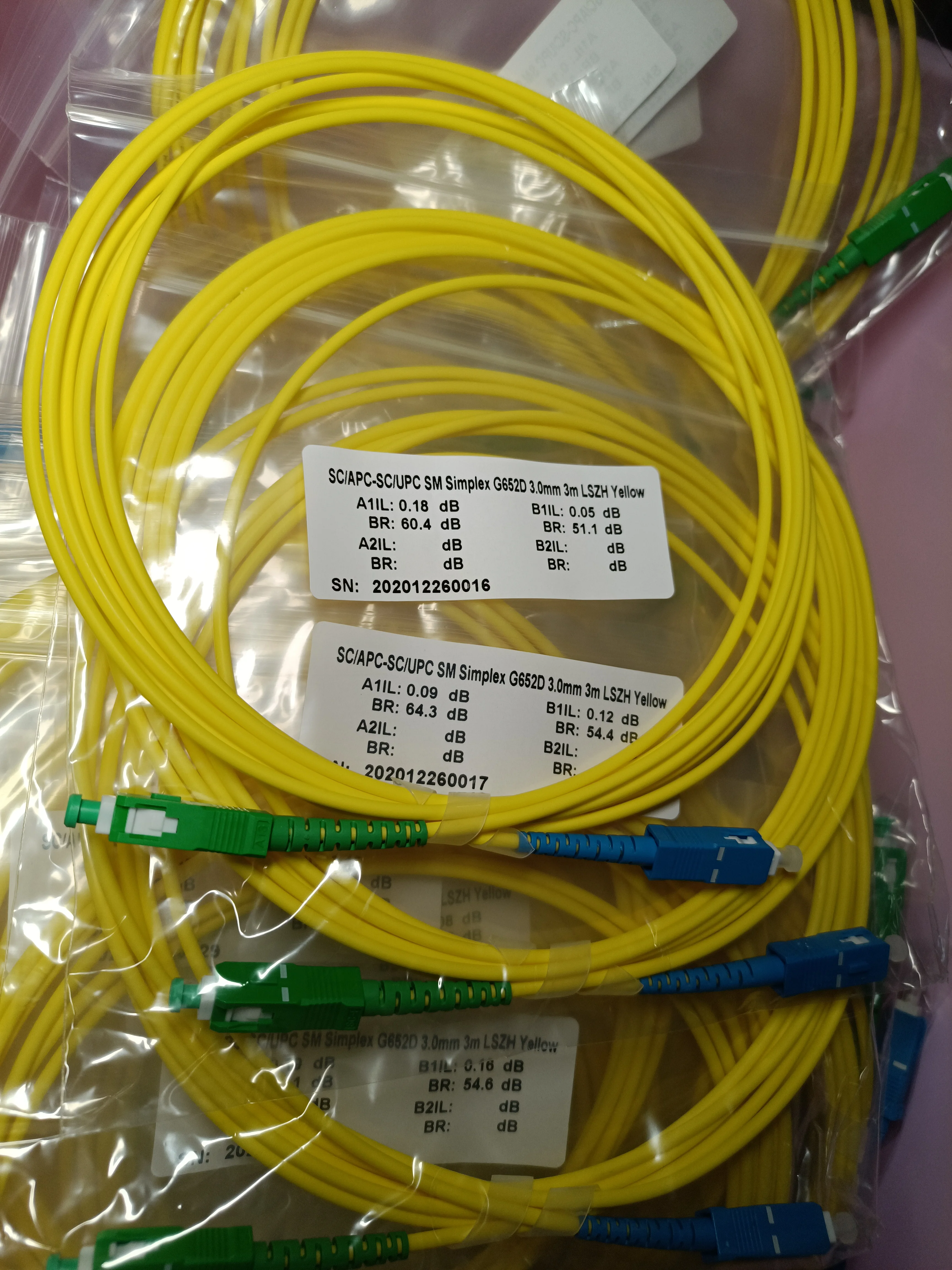

10PCS/bag SC/ UPC-SC/ APC Simplex mode fiber optic patch twine
CATV
Optical fiber communication techniques
Optical fiber information transmission
Constructing community entry
Cabling system, ODF
FTTX functions
Options
Low insertion loss and again reflection loss
Good echangeabilityGood Sturdiness
Excessive temperature stability
CE,ROHS,FCC
Traits
1) Connector kind: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2) Ferrule Finish-face: PC, UPCAPC
3) Core Sort: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Amount: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores…
5) Cable Diameter: φ3.0mm,φ2.0mm, φ0.9mm
6) Cable Size: 1, 2, 3 meter or personalized
7) Cable kind: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
Specs
|
Specification |
Unit |
FC, SC, LC/Armored Cables |
ST, MU |
MT-RJ, MPO |
E2000 |
||||||||
|
Single-mode |
Multi-mode |
Single-mode |
Multi-mode |
Single-mode |
Multi-mode |
Single-mode |
|||||||
|
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
PC |
APC |
||
|
Insertion loss |
dB |
≤2 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.2 |
≤0.2 |
≤0.3 |
≤0.3 |
|
Return loss |
dB |
≥550 |
≥50 |
≥60 |
≥30 |
≥45 |
≥50 |
≥30 |
≥45 |
≥50 |
≥35 |
≥55 |
≥75 |
|
Wavelength |
nm |
1310,1510 |
1310,1510 |
1310,1510 |
1310,1510 |
||||||||
|
Interchangeability |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
||||||||
|
Vibration |
dB |
≤0.2 |
≤0.2 |
≤0.2 |
≤0.2 |
||||||||
|
Working temperature |
℃ |
-40~75 |
-40~75 |
-40~75 |
-40~75 |
||||||||
|
Storage temperature |
℃ |
-45~85 |
-45~85 |
-45~85 |
-45~85 |
||||||||
|
Cable diameter |
mm |
φ3.0,φ2.0,φ0.9 |
φ3.0,φ2.0,φ0.9 |
φ3.0,φ2.0,φ0.9 |
φ3.0,φ2.0,φ0.9 |
||||||||
The way to Select The Proper Fiber Optic Cable Sort?
PS:The distinction of OM4 and OM3 fiber mode as the next
1. OM4 was developed particularly for VSCEL laser transmission and permits 10 Gig / second hyperlink distances of as much as 550 Meters (in comparison with 300M with OM3).
2. The efficient modal bandwidth for OM4 is greater than double that of OM3.
3. For OM4 patch cable it’s 4700 MHz.km whereas for OM3 it’s 2000 MHz.km.
| Designation | Fiber Dia.(μm) | Sort | Quick Ethernet 100BASE-FX | 1 Gigabit Ethernet 1000BASE-SX | 1 Gigabit Ethernet 1000BASE-LX | 10Gbps Ethernet 10GBASE | 40Gbps Ethernet 40GBASE SR4 | 100Gbps Ethernet 100GBASE SR4 |
| OM1 | 62.5/125 | Multimode | 2000M | 275M | 550M | 33M | Not supported | Not supported |
| OM2 | 50/125 | Multimode | 2000M | 550M | 550M | 82M | Not supported | Not supported |
| OM3(Laser Optimized) | 50/125 | Multimode | 2000M | 550M | 550M | 300M | 100M(SR4) | 100M(SR4) |
| OM4(Laser Optimized) | 50/125 | Multimode | 2000M | 550M | 550M | 400M | 150M(SR4) | 150M(SR4) |
| Singlemode | 9/125 | Singlemode | 2000M | 5km at 1310nm | 5km at 1310nm | 10km at 1310nm | N/A | N/A |
Optical Fiber Wire Predominant Interface kind
We provide personalized number of Optical Patch twine, the hyperlink is for LC-LC connector. In the event you want different interface kind, please be happy to contact customer support for particulars.
Specification: 10PCS/lot SC/ UPC-SC/ APC Simplex mode LSZH Fiber Optic Patch Wire For CATV Community
|
