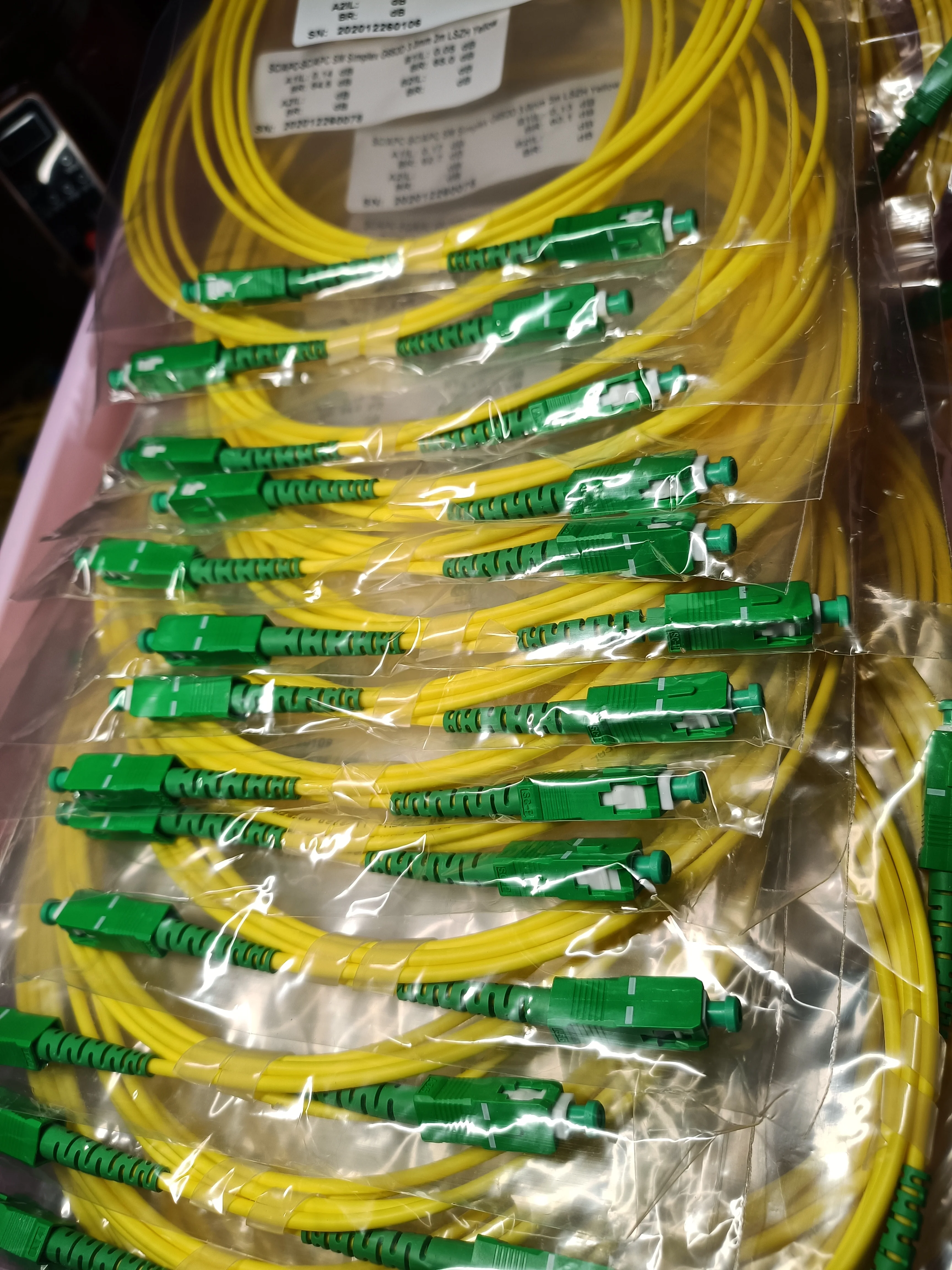

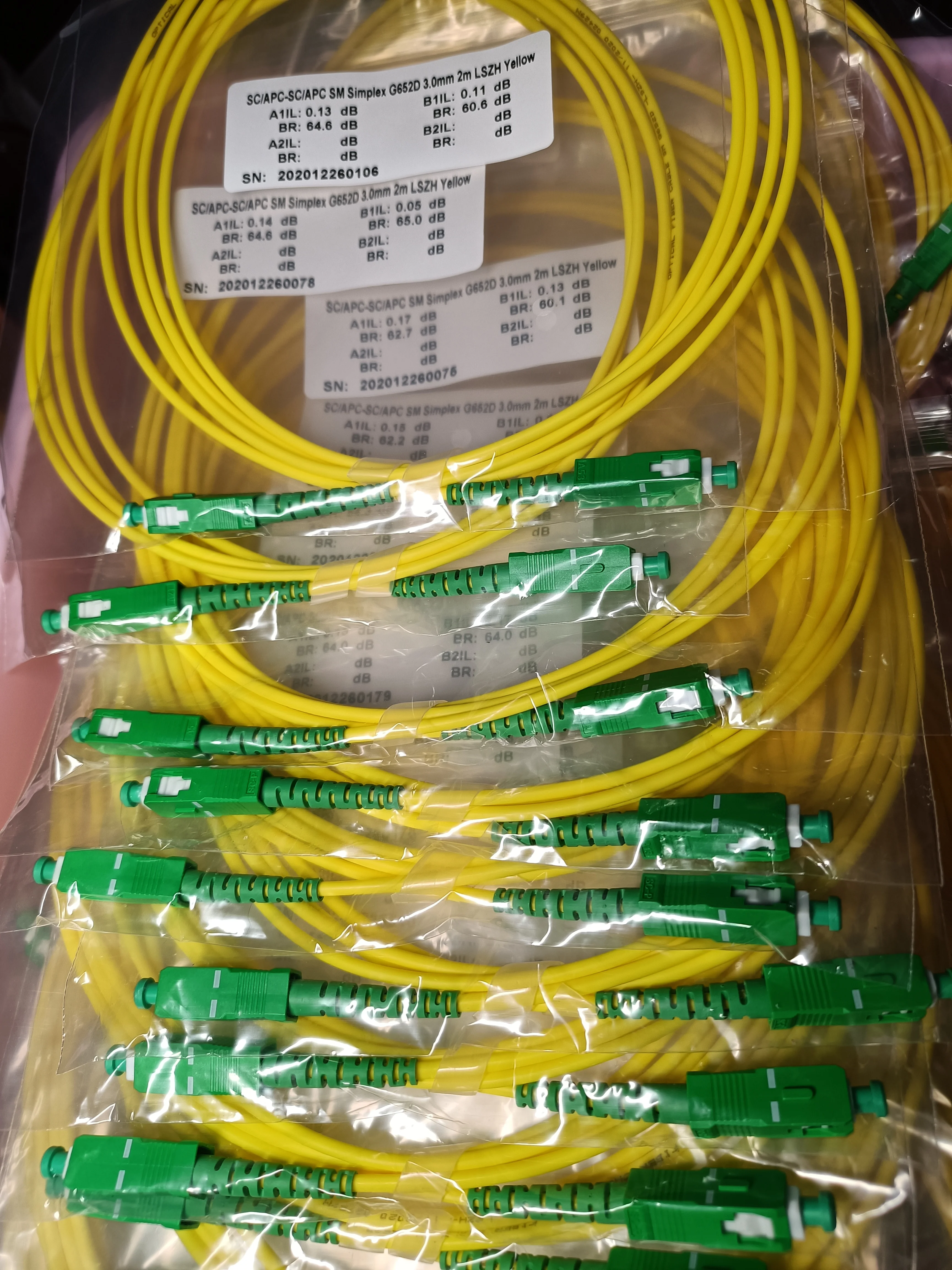

10PCS/bag SC APC Simplex mode fiber optic patch wire Cable 3.0mm FTTH LSZH Fiber Optic Patch Wire
$21.00
3mm SC/APC Fiber Optic Jumper Cable SC/APC-SC/APC LSZH Fiber Optic Patch Wire
Functions
CATV
Optical fiber communication programs
Optical fiber knowledge transmission
Constructing community entry
Cabling system, ODF
FTTX functions
Options
Low insertion loss and again reflection loss
Good echangeabilityGood Sturdiness
Excessive temperature stability
CE,ROHS,FCC
Traits
1) Connector sort: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2) Ferrule Finish-face: PC, UPCAPC
3) Core Sort: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4) Cable Amount: Simplex, Duplex, 6cores ,12corns, 16cores, 24cores, 36cores, 48cores…
5) Cable Diameter: 3.0mm,2.0mm, 0.9mm
6) Cable Size: 1, 2, 3 meter or custom-made
7) Cable sort: PVC, LSZH, OM3, OFNR, OFNP, Plenum ,Armored
Specs
|
Specification |
Unit |
FC, SC, LC/Armored Cables |
ST, MU |
MT-RJ, MPO |
E2000 |
||||||||
|
Single-mode |
Multi-mode |
Single-mode |
Multi-mode |
Single-mode |
Multi-mode |
Single-mode |
|||||||
|
PC |
UPC |
APC |
PC |
PC |
UPC |
PC |
PC |
UPC |
PC |
PC |
APC |
||
|
Insertion loss |
dB |
2 |
0.2 |
0.3 |
0.2 |
0.3 |
0.2 |
0.2 |
0.3 |
0.2 |
0.2 |
0.3 |
0.3 |
|
Return loss |
dB |
550 |
50 |
60 |
30 |
45 |
50 |
30 |
45 |
50 |
35 |
55 |
75 |
|
Wavelength |
nm |
1310,1510 |
1310,1510 |
1310,1510 |
1310,1510 |
||||||||
|
Interchangeability |
dB |
0.2 |
0.2 |
0.2 |
0.2 |
||||||||
|
Vibration |
dB |
0.2 |
0.2 |
0.2 |
0.2 |
||||||||
|
Working temperature |
-40~75 |
-40~75 |
-40~75 |
-40~75 |
|||||||||
|
Storage temperature |
-45~85 |
-45~85 |
-45~85 |
-45~85 |
|||||||||
|
Cable diameter |
mm |
3.0,2.0,0.9 |
3.0,2.0,0.9 |
3.0,2.0,0.9 |
3.0,2.0,0.9 |
||||||||
Learn how to Select The Proper Fiber Optic Cable Sort?
PS:The distinction of OM4 and OM3 fiber mode as the next
1. OM4 was developed particularly for VSCEL laser transmission and permits 10 Gig / second hyperlink distances of as much as 550 Meters (in comparison with 300M with OM3).
2. The efficient modal bandwidth for OM4 is greater than double that of OM3.
3. For OM4 patch cable it’s 4700 MHz.km whereas for OM3 it’s 2000 MHz.km.
| Designation | Fiber Dia.(μm) | Sort | Quick Ethernet 100BASE-FX | 1 Gigabit Ethernet 1000BASE-SX | 1 Gigabit Ethernet 1000BASE-LX | 10Gbps Ethernet 10GBASE | 40Gbps Ethernet 40GBASE SR4 | 100Gbps Ethernet 100GBASE SR4 |
| OM1 | 62.5/125 | Multimode | 2000M | 275M | 550M | 33M | Not supported | Not supported |
| OM2 | 50/125 | Multimode | 2000M | 550M | 550M | 82M | Not supported | Not supported |
| OM3(Laser Optimized) | 50/125 | Multimode | 2000M | 550M | 550M | 300M | 100M(SR4) | 100M(SR4) |
| OM4(Laser Optimized) | 50/125 | Multimode | 2000M | 550M | 550M | 400M | 150M(SR4) | 150M(SR4) |
| Singlemode | 9/125 | Singlemode | 2000M | 5km at 1310nm | 5km at 1310nm | 10km at 1310nm | N/A | N/A |
Optical Fiber Wire Major Interface sort
We provide custom-made number of Optical Patch wire, the hyperlink is for LC-LC connector. In case you want different interface sort, please be happy to contact customer support for particulars.
Specification: 10PCS/bag SC APC Simplex mode fiber optic patch wire Cable 3.0mm FTTH LSZH Fiber Optic Patch Wire
|
