X97 Fiber Optic Fusion Splicer,Absolutely Automated Fusion Splicer with 4.3-inch Display Sensible FTTH Machine with 8 Seconds Splicing Time Melting for Optical Fiber & Cable Tasks(#2)

Worth: $1,532.59
(as of Jul 10,2022 19:49:54 UTC – Particulars)

Specification:
Merchandise Kind: Fiber Fusion Splicer
Fiber Rely: Single
Relevant Fiber Dimension: Cladding Diameter: 80-150 Um. Wrapper Diameter: 160-900 um
Typical Splice Loss: 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Return Loss: 60dB
Fiber Cleaved Size: Approx. 10 ~ 16mm / 0.4 ~ 0.6in(coating diameter<250 Um), approx. 16mm / 0.6in
(coating diameter: 250-1000um)
Splicing Program: 40 Teams
Function Mode: Handbook, automation
Auto-Heating: Obtainable
Typical Splicing Time: 8 Seconds
Tube Heating Time: 26 Seconds for 60mm and 40mm shrinkable sleeves
Fiber View Magnification: 250x (X or Y view), 125x (X and Y view)
Viewing Technique and Show: 2 CMOS cameras, 4.3 inch colour LCD monitor
Storage of Splice Outcome: 4000 Outcomes loss analysis
Obtainable Rigidity Check: 1.8-2.2N
Interface: GUl menu interface, simpler operation
Battery Capability: 5800mAh, typical 200 cycles(splice and tube warmth), pluggable inside Li-battery
Energy Provide: Adaptor, Enter: AC100-240V(50/60HZ), Output: DC11-13.5V
Electrode Life: Greater than 4000 discharges, could be changed conveniently
Terminals: USB 2.0 port, for importing splice outcomes and upgrading software program
Working Situation: Altitude: 0-5000meter, Humidity: 0-95%, Temperature: -10-50℃, Wind Pace: Most 15meter/s

Bundle Listing:
1 x Fusion Splicer;1 x Fiber Cleaver;2 x Electrode Sheet;1 x Optical Fiber Stripper;1 x Stripping Line
1 x Cooling Rack;1 x U Disk;1 x Sponge Pad;1 x Brush;1 x Tweezers;1 x Mounted-Size Machine
1 x Energy Twine;1 x Adapter;1 x Hex Wrench;1 x Carrying Case;1 x String;1 x Person Handbook

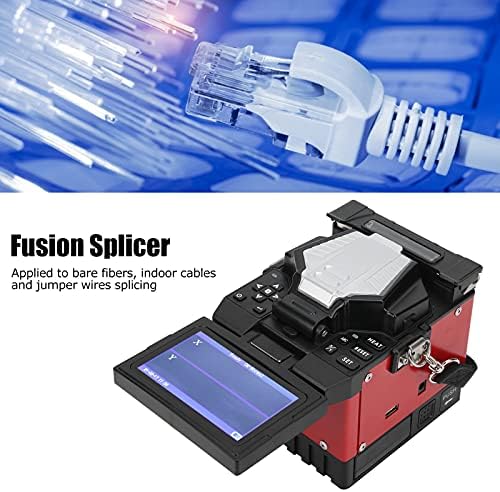

Automated:This machine is hand-held, small, gentle, assist core to core digital alignment.ARC is calibrated by temperature and air strain mechanically, very handy.Routinely switching on windshield and heater in 4 steps, simple to function.The product is utilized to reveal fibers, indoor cables and jumper wires splicing.
Relevant Fiber: SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(together with G.657).8s splicing time, 26s tube heating time, utilizing 5800mAh and pluggable Li-battery, typical 200 cycles.Clear the within and out of doors of the optical fiber fusion splicer, and the optical fiber itself, the necessary factor is the V‑formed groove, optical fiber presser foot and different components.
Observe:1.When reducing, guarantee that the reducing finish face is 89°±1°, which is roughly vertical. In the course of the strategy of inserting the reduce optical fiber on the designated place, the top face of the optical fiber mustn’t contact anywhere. If it encounters it, we have to clear and reduce once more. Emphasize on cleansing first after which reducing.
Observe:2.Whenever you take it out after heating, don’t contact the heated half. The temperature may be very excessive to keep away from hazard.When inserting the optical fiber in its place, do not be too far or too shut, 1/2 place, proficiency.Throughout the entire strategy of welding, don’t open the windproof cowl.When arranging instruments, take note of the breaking fiber head to forestall hazard. The fiber is glass fiber, which may be very skinny and exhausting.
Observe:3.Heating the warmth‑shrinkable tube, the method is known as the reinforcement of the splicing half. When heating, the fiber splicing half have to be positioned within the center, and a sure rigidity must be added to forestall bubbles from the heating course of and inadequate fixation. It’s emphasised the heating course of and the fusion splicing strategy of the optical fiber could be carried out on the similar time.
