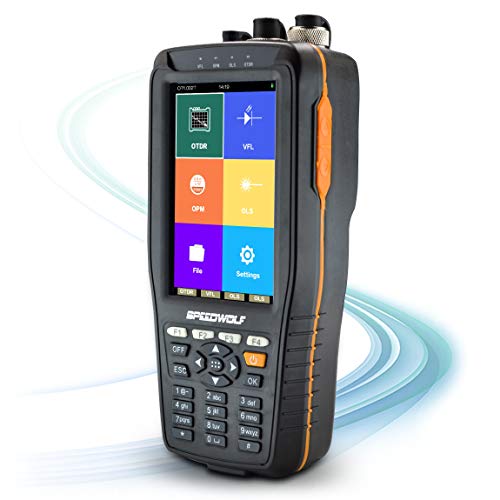

SPEEDWOLF 1310/1550nm 22/20dB Handheld 4in1 OTDR +VFL+OPM+OLS 4″ Touchscreen 60km OTDR Fiber Optic Tester with SC(APC)+FC(APC)+FC to LC(APC) Adapter
$438.00
Value: $438.00
(as of Jul 09,2022 04:24:22 UTC – Particulars)
Shenzhen SPEEDWOLF Know-how Co., Ltd. is an organization specializing within the manufacturing of optical fiber fusion splicer, optical fiber cleaver, OTDR, mild supply, optical energy meter, and optical fiber fixture, and different optical communication instrument high-tech enterprises.
Product Dimensions : 7.1 x 3.1 x 2 inches; 1.76 Kilos
Merchandise mannequin quantity : OTDR22F
Batteries : 1 Lithium Ion batteries required. (included)
Date First Accessible : October 14, 2019
Producer : speedwolf
ASIN : B07Z4GPL7H
Nation of Origin : China
【4in1 Multi-Operate OTDR】–SPEEDWOLF OTDR22F-T1 is a 4in1 multi-function Optical Time Area Reflectometer (OTDR), it embody 4 fuction:OTDR-1310/1550nm&22/20dB(60km Take a look at Distance), Visible Fault Locator (VFL)-650nm&10mW,Optical Fiber Energy Meter(OPM)-800～1650nm&-50～+26 dBm and Optical Mild Supply(OLS)-1310/1550nm,and it’s the most cost-effective OTDR.
【Moveable Design】–Very Small measurement and lightweight weight–Solely 180x80x50mm/7.1×3.1×2.0inch and 0.45KG/1LB,and it is vitally simple to hold anyplace; in the meantime, SPEEDWOLF OTDR22F-T1 is supplied with 4inch IPS outdoor-enhanced touchscreen, It’s extra handy to make use of than an OTDR with solely buttons, and seven.4V/4400Ah Lithium battery can meet the fiber check necessities of at some point. Use the rubber Key, good dustproof, waterproof, quakeproof capability, appropriate for discipline upkeep work.
【Excessive Accuracy and Decrease Lifeless Zone】– Lifeless Zone of Reflection as decrease as 2meter,and Lifeless Zone of attenuation Occasion as decrease as 12meter, so it doesn’t require OTDR launch cable when testing fiber; in the meantime,The max measure distances is 60km(38mi), and the accuracy distance (Reflection Occasion) is about ±(1m+2*10(-4)*Distance),it appropriate for engineer building and upkeep fault location of FTTx and entry community.
【Large Compatibility】– SPEEDWOLF OTDR22F-T1is a completely featured, entry-level, devoted OTDR,it’s suitable with SC/APC,FC/APC,LC/APC connector for telecommunications, radio and tv, railway, electrical energy, navy, schooling ,analysis institutes and so on.
【Fear-Free WARRANTY】– SPEEDWOLF has strict high quality necessities. All our commitments, actions and merchandise should be acknowledged as an expression of high quality. Our most important high quality criterion is the satisfaction of our clients. On the similar time, we offer 60-day money-back, 2 years free upkeep (Host — 2 years, Battery — 1 yr, Different accessories–2 years) and lifelong assist.
