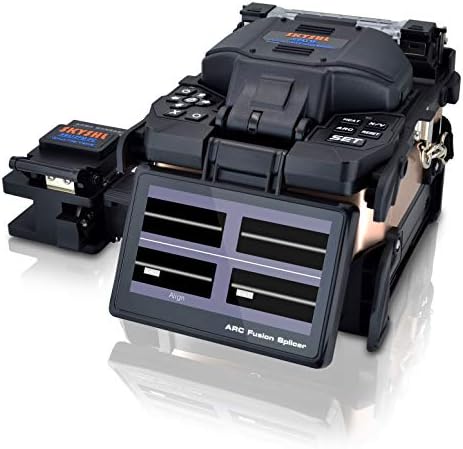

SKYSHL Core Alignment 4.3inch Contact Display FTTH Optical Fiber Fusion Splicer (With 5pairs Electrodes,Fiber Cleaver and Device Set) Handheld SM MM DS NZDS Fiber Splicing Machine (SS414F)

Value: $1,089.00
(as of Jul 08,2022 14:55:19 UTC – Particulars)

Product Description

Core Alignment Optical Fiber Fusion Splicer/Fiber Splicing Machine

SS414F is a core alignment fusion splicer with a really small dimension and really gentle weight. it’s geared up with a 4.3inch high-resolution capacitive contact display to make work extra environment friendly.

The SS414F fusion splicer is full of a complete host of latest and enhanced options particularly developed with the target of enabling the person to work sooner with greater precision. Total splice course of time has been considerably diminished. This has been achieved with a mix of enhancements to the response time of the automated wind protectors and automatic heater, new fiber retention clamps, improved common sheath clamps and a redesigned inside construction that matches the safety sleeve to the fusion splice level which permits splicing to be achieved with out the necessity of the person to the touch the SS414F as soon as the method has began.

The SKYSHL SS414F is a superior single fiber core alignment fusion splicers which possesses superior picture processing know-how, in the meantime, it has excessive precision CMOS digital camera, lenses and servos which offer correct core to core alignment no matter core-cladding concentricity error[Actual average splice loss:0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS)].

SS414F Core Alignment Optical Fiber Fusion Splicer Key Options:

Market main excessive precision and correct core alignment know-how with superior picture processing;
6s Splicing time and 13s heating time(Quick Mode);
4.3inch excessive decision TFT contact display with 380X magnification;
3 high-power white LEDs and illuminated keypads simplifies your work at night time;
Mud proof, water proof, shock proof and excessive temperature resistance;
11.1V 4000mah rechargeable Lithium battery, and it helps greater than 300times of fiber splicing or warmth shrink tube heating.
Present 5pairs of electrodes (1pair is put in on the splicer, 4pairs are spare);
The fiber cleaver adopts a high-strength tungsten metal blade with 16 slicing surfaces, and the variety of cuttings is as much as 48,000.
Automated focus, computerized splicing, computerized heating, computerized calibration, computerized arc compensation, and so forth. ;
Present a full set of fiber optic instruments, resembling fiber stripper, fiber cleaver and Kevlar Scissors and so forth.

Excessive efficiency fusion Splicer

The SKYSHL SS414F fusion splicer makes use of a strong high-speed motor and a high-performance CPU, which may obtain a quick splicing time of 6 seconds and a heating time of 13 seconds (quick mode), and it saving engineers time;

In the meantime,SS414F will verify the core place and eccentricity, fiber finish face high quality, fiber axis place and dirt detection earlier than splicing. If the predefined restrict worth is exceeded, an computerized warning message shall be despatched to the person. On the similar time, SS414F can even carry out computerized monitoring of environmental situations (resembling temperature, air stress and air humidity). Carry out computerized arc compensation to compensate for these environmental results. After the splicing is accomplished, SS414F can carry out splicing loss evaluation and tensile testing to verify splicing factors and mechanical stability. Even utilizing totally different fibers or fibers with excessive core eccentricity, wonderful splicing outcomes will be obtained.

SS414F Core Alignment Optical Fiber Fusion Splicer Parameter:

Relevant fibers & precise common splice loss:0.02dB(SM/G.657), 0.01dB(MM), 0.04dB(DS/NZDS);Return loss:>60dB.
Suitable Fiber/Cable: 0.25-3mm/Indoor Cable; Coating diameter:125-1000μm;Fiber cleaved size:8-16mm.
Typical splicing time:6s (Quick Mode);Tube typical heating time:13s(Quick Mode)/30s(Typical Mode)
Safety Sleeve Size:20/30/40/40/50/60mm;Storage of splice end result:20000 Splice Knowledge&200 photographs.
Fiber picture magnification: X,Y,XY,X/Y&380xMagnification;Pressure take a look at:1.96N-2.25N.
Battery capability: Typical 300 cycles (splice/tube warmth with Li-battery ) .
Monitor:4.3inch TFT Contact Display.
Electrode life:5*8000(5pairs of Electrodes).
Energy provide: AC Enter 100-240V;DC Output 12-15V;Lithium battery (11.1V 4000mAH).
Dimension: 155*130*125mm/6.1*5.12*4.92inch;1.75KG/3.85lb Together with battery.

Suitable with A number of Fibers

SS414F is an excellent core-aligned fiber fusion splicer with superb compatibility, and it’s broadly suitable with SM (ITU-T G.652, G.657A1 and G.657A2), MM (ITU-T G.651), DSF (ITU-T G.653), Reduce-off Shifted Fiber (ITU-T G.654, Massive Space kind), NZD (ITU-T G.655) and BIF/UBIF (Bend Insensitive Fiber ITU-T G.657B3).

Clever,Sturdy and Pleasant Design

The 4.3-inch TFT contact display is straightforward and intuitive to function. To enhance visibility in low gentle situations, two LED lights illuminate your complete splicing cavity. SS414F fusion splicer can even meet the strict necessities of on-site use. Though the highest cowl design and durable physique of the SS414F splicer tremendously scale back the looks and weight, the light-weight physique supplies affect resistance, waterproof and dustproof features.

The interface design of SS414F may be very pleasant, you’ll be able to set the parameters very simply. On the similar time, SS414F has raised the extent of automation to a brand new level–Automated fiber identification, computerized focus, computerized splicing, computerized heating, computerized calibration and computerized arc compensation, and so forth. ,You solely want a number of easy steps to attain high-precision fiber splicing.

Massive Capability Battery

SKYSHL SS414F totally understands the wants and worries of customers working open air, and supplies a set of high-quality large-capacity rechargeable lithium batteries in response to the precise wants of shoppers. A full cost can obtain 300 welding and heating operations, mainly assembly the wants of customers working open air.

Large Utility

Optical fiber community has the traits of lengthy transmission distance, quick transmission velocity, low loss, and robust anti-interference capability. As an increasing number of industries connect significance to intelligence and knowledge know-how, along with conventional broadband optical fiber networks, An increasing number of information is transmitted by optical fiber networks in some rising fields(Similar to radio and tv, railway, transportation, electrical energy, authorities affairs, and so forth.).

SS414F collection optical fiber fusion splicer is a vital software for the upkeep and building of optical fiber networks. It is vitally appropriate for radio and tv networks, clever energy networks, clever transportation techniques, CCTV/CATV networks, authorities workplace networks, monetary networks, FTTH, LAN, information facilities and cloud computing community and so forth..

SS414F Optical Fiber Fusion Splicer Purposes:

LAN,WAN for the aim of telecommunication networks.
CCTV/CATV Programs.
Set up of Fiber optic community.
Upkeep of optical fiber community.
Lengthy distance optical networks.
FTTH optical networks.
Metro community.
Knowledge facilities.
Different fiber optic networks.

Wealthy Equipment

SKYSHL SS414F supplies a wealthy set of equipment, resembling geared up with 5 pairs of electrodes, which may meet customers’ 4*8000 fiber splicing, geared up with 16-sided fiber cleaver, can obtain 48,000 fiber slicing, 11.1V 4000mah rechargeable lithium The battery can meet the engineer’s work open air for a day, and these equipment can fulfill the person to begin working instantly after opening the field.

SS414F Optical Fiber Fusion Splicer Package deal Record:

1*ABS Field+1*SS414F Fusion Splicer+1*Oxford Strap+1*Miller Fiber Stripper+1* Fiber Stripper+1*Kevlar Scissors+1*Alcohol Bottle(No Alcohol)+1*Cleansing Brush+10*Electrodes+1*Fiber Cleaver+1*Hex Screwdriver+1*Manufacturing facility Check Report+1*Packing Record+1*SS414F Consumer’s Handbook+1*11.1V 4000mah Lithium Battery+1*100-240V Energy Adapter

High quality Management and SKYSHL

SKYSHL has greater than 10 years of expertise in manufacturing optical fiber inspection tools resembling fusion splicers, OTDRs, and optical energy meters. Now we have a wonderful R&D group and after-sales group. We regard product high quality as life, and strictly comply with ISO9001 for manufacturing administration. All the manufacturing course of is strictly managed, and all merchandise have undergone excessive temperature take a look at, low temperature take a look at, vibration take a look at, cost and discharge take a look at earlier than leaving the manufacturing unit.

On the similar time, we proceed to enhance our work and have a group {of professional} after-sales on standby 24 hours a day to offer every buyer with a full vary {of professional} technical steerage.

We offer detailed product info and utilization movies for all merchandise, resembling person manuals, take a look at studies, calibration certification, operation movies, upkeep movies, and so forth., in order that prospects can begin working instantly after they get the merchandise.

We offer a free substitute for 3 years. While you encounter issues, we’re the strongest backing for our prospects.

★Core Alignment Fusion Splicer★–SKYSHL SS414F is a core alignment fiber fusion splicer with superior picture processing know-how; with the intention to guarantee high-precision fiber core-to-fiber core alignment and splicing, SS414F adopts excessive precision CMOS digital camera, optical system and servo system; and use high-precision CNC machining of optical fiber fixing clips, V-shaped grooves and different steel components.
★Quick splicing and heating★–The SKYSHL SS414F welding machine makes use of a strong high-speed motor and a high-performance CPU, which may obtain a quick splicing time of 6 seconds and a heating time of 13 seconds (quick mode), which tremendously improves the work of the engineer Effectivity; SS414F fusion splicer may be very appropriate for information heart, Metro, LAN and FTTx fiber tasks.
★4.3-inch contact display design and sturdy look design★–SS414F optical fiber fusion splicer is supplied with a 4.3-inch TFT contact display, which is straightforward and intuitive to function. The SS414F optical fiber fusion splicer adopts a light-weight and durable aluminum alloy shell and an built-in silicone protecting cowl, which makes it immune to affect, windproof, waterproof and dustproof, in order to fulfill the necessities of assorted harsh environments.
★Automated perform design★–SKYSHL SS414F can mechanically monitor environmental situations (resembling temperature, air stress and air humidity), and carry out computerized arc compensation to compensate for these environmental results. And SKYSHL SS414F additionally has computerized focusing, computerized welding, computerized heating, computerized correction and different computerized features.
★Splicing analysis perform★–After the fiber splicing is accomplished, SS414F can carry out splicing loss analysis and tensile take a look at to verify the splicing level and mechanical stability (should be opened within the settings). Even utilizing totally different fibers or fibers with excessive core eccentricity, wonderful splicing outcomes will be obtained.
★5PAIRS of Electrodes+Fiber cleaver+Fiber software set★–Now we have geared up customers with a wealth of equipment in order that customers can instantly carry out high-precision fiber splicing; 5PAIRS of electrodes can carry out 5*8000 high-quality splicing operations;The fiber cleaver has a 16-point tungsten-gold blade, which may reduce 48,000 occasions;11.1V 4000mah lithium battery can carry out 300 occasions of fiber splicing or warmth shrink tube heating.
