Excessive Achieve 10dBi SMA Male Vast Band 3G/4G LTE Omni-Directional Outside Mounted Mount Antenna for Cell Cell Telephone 4G LTE Router, Eifagur
$42.99
Value: $42.99
(as of Jul 10,2022 17:27:26 UTC – Particulars)
Specs:
Achieve: 10dBi;
Frequency Vary: 698-960 MHz, 1710-2170 MHz, 2300-2700 MHz;
VSWR: <2.0;
Impedance: 50 ohm;
Route: Omni-directional;
Function: Mounted Wall Mount;
Antenna connector: SMA male;
Antenna Cable Size:5M LOW Loss Coaxial Cable;
Adapter Cable: SMA Feminine to Twin SMA Male with 25cm RG316 Cable;

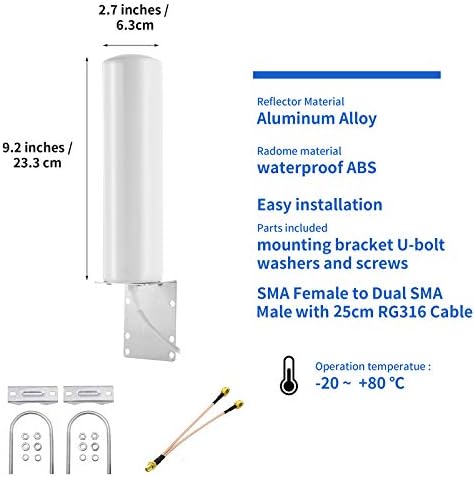

Dimensions: Appox.23 X 6.5 X 6.5CM;
Working Temperature: -20°С ~ +80°С;
Storage Temperature: -30°С ~ +85°С;
Package deal Checklist: 1 x Antenna Package; (Because the Image Proven);1 x Adapter Cable
Be aware: The set up mast shouldn’t be included, solely the Antenna package and Adapter Cable.
Set up Reminder: When putting in this Omni-directional antenna, please maintain it as vertical as attainable, So as to get a greater sign, please maintain the antenna as free as attainable (particularly the metallic baffle) and excessive sufficient.
NOTE:*Use 50 Ohm RF coax cables（besides RG174 ）,DON’T Use RG59/RG6 coax (75 Ohm cable) – sign might be significantly degraded.
Works on 3G, 4G, LTE, GSM CDMA mobile providers with SMA connection consists of Sierra Wi-fi Verizon AT T,Netgear Dash,Novatel Wi-fi Verizon 4G router gateway cellular cellphone 4G LTE Router
Suitable with: Huawei 4G LTE Wi-fi Router B525 B525S B315 B593 B880 B890 B310 E5186 E5175; ZTE MF28G MF28D MF288 MF286 MF285 MF283 MF275U MF275R MF25D Z723EL WF721 MF279 MOFI 4500 Router.
EASY TO INSTALL: Designed for exterior set up, the 4g antenna from includes a rugged waterproof construction that is designed to resist injury from the weather.This package deal consists of two U-bolt brackets for 1.5- to 2- inch pipe or mast.It may simply be arrange in an outside house together with residence rooftops, utility poles, surveillance trailers, workplace and wherever else you need.
Set up Reminder: When putting in this Omni-directional antenna, please maintain it as vertical as attainable, So as to get a greater sign, please maintain the antenna as free as attainable (particularly the metallic baffle) and excessive sufficient.
If you’re undecided whether or not it’s appropriate on your gear, please contact us for assist.
