Arducam Multi Digital camera Adapter Module V2.2 for Raspberry Pi 4 B, 3B+, Pi 3, Pi 2, Mannequin A/B/B+, Work with 5MP or 8MP Cameras

Value: $49.99
(as of Jul 08,2022 23:39:37 UTC – Particulars)

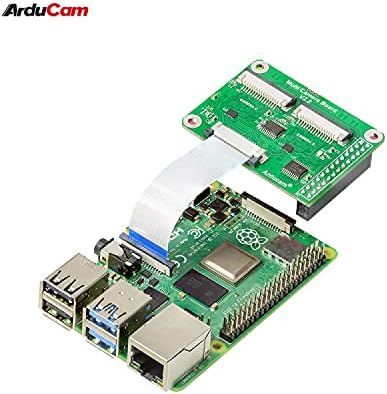

In comparison with the earlier multi-camera adapter module which might solely assist 5MP RPI cameras, the brand new multi-camera adapter module V2.2 is designed for connecting most 4 5MP, 8MP and 12MP digital camera to a single CSI digital camera port on a Raspberry Pi board. Contemplating that the high-speed CSI digital camera MIPI sign integrity is delicate to an extended cable connection, this adapter board doesn’t assist stacking and may solely join 4 cameras at most. As a result of It covers a lot of the use circumstances like 360-degree view images and surveillance, including extra cameras will degrading the digital camera efficiency.
The earlier mannequin work with Raspbian 9.8 and backward, and does NOT work with Raspbian 9.9 and onward, so this mannequin is out to deal with this concern.
Please be aware that Raspberry Pi multi-camera adapter board is a nascent product which will have some stability points and limitations due to the cable’s sign integrity and RPi’s closed supply video core libraries, so use it at your personal threat.

Options

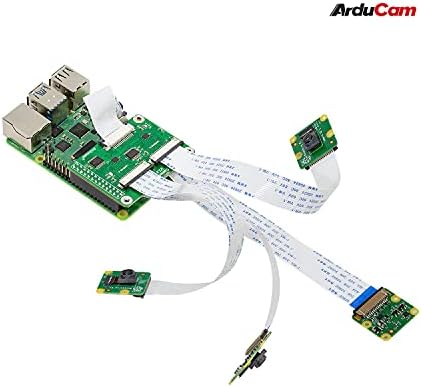

Accommodate 4 Raspberry Pi cameras on a single RPi board
Help 5MP OV5647 or 8MP IMX219 digital camera, no mixing allowed
3 GPIOs required for multiplexing
Cameras work in sequential, not concurrently
Low decision, low body charge video surveillance demo with 4 cameras
Excessive decision nonetheless picture images demo

NOTE: Raspberry Pi Contact Show (DSI interface) Compatibility Points
If you use a DSI show along with this adapter, you’ll encounter the difficulty of I2C conflicts. We advocate you utilize HDMI shows or run headless when utilizing this adapter.
Help Raspberry Pi Mannequin A/B/B+, Pi 2 and Raspberry Pi 4, 3, 3b+. The default utilization of this product is taking nonetheless photos, and when it’s used to retailer movies, the body charge might be decreased.
Accommodate as much as 4 5MP OV5647 / 8MP IMX219 ，or different Arducam MIPI digital camera, no mixing allowed.

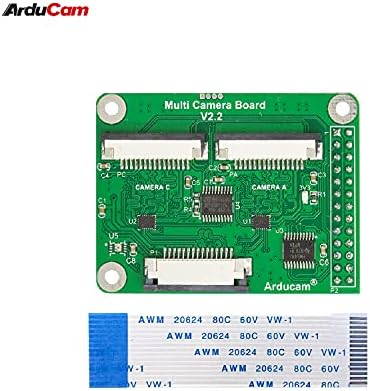

All digital camera ports are FFC (versatile flat cable) connectors. Small measurement and good flexibility.
Cameras work in sequential, not concurrently. Brief interval to modify digital camera.Just for Excessive decision nonetheless picture images.
With this 4 digital camera adapter, you may get good 360 diploma monitoring. Change totally different cameras to take photos from a number of angles.
